8000KN 800 Tons Scrap Metal Shear Heavy Duty Hydraulic Transmission

  • Place of Origin: CHINA
    Brand Name: huake
    Certification: CE
    Model Number: QW-800

    Minimum Order Quantity: 1 set
    Price: USD 50000-80000
    Packaging Details: water proof package ,export worthy package
    Delivery Time: 40-50 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 50 Sets Per Year
Order phone：+86-13003381217
Inquiry

Detail

Model NO.: QW-800 Scrap Metal Shear SHEARING POWER: 800 TONS ,AND CAN CUSTOMIZE
Advantage: Cutting Speed High, Production Rate High Other Name: Scrap Metal Box Shear , Scrap Metal Container Shear,
Painting: Anti-rust Paint Customize Colour Type: Scrap Metal Shear For Various Kind Of Metal Scrap
Automation: Automatic, PLC Control .with Remote Control Function: To Cut Various Size Scrap Metals At High Efficiency
Transport Package: By Bulk Ship Guarantee: 1 Year Guarantee And Life-long Service
Fit For: Varoius Ckinds Of Scrap Metal Especially Pipes Condition: New Customize Hydraulic Scrap Metal Shear
Product Name: Container Type Heavy Duty Scrap Metal Shear
High Light: 4000KN Scrap Metal Shear , 800 tons Scrap Metal Shear , heavy duty Scrap Metal Shear
Product Description

800 tons power Scrap Metal Shear , Scrap Metal Container Shear/ scrap metal box shear

Horizontal Scrap Metal Recycling Container Shear (factory) HYDRAULIC SCRAP METAL CONTAINER SHEAR


I. Suitable for:

It is suitable for cold shearing of light and thin materials with various cross-sectional shapes (such as color steel tiles, channel steel, steel plates, etc.) to make them meet the requirements of the charge; and is convenient for storage and transportation, and can be used for metal recycling, casting and smelting industries , Machinery construction industry and many other industry supporting services.

II. Product advantage

01 This machine adopts hydraulic transmission, which is small in size, light in weight, small in

Low pitch, stable movement, flexible operation, large cutting section, etc.Our shear has speeder, when unload, one cylinder will drive the main shearing cylinder to move, with more than 50% faster speed, save more than 30% time.


02 It adopts the integrated control of machine, hydraulic and electricity, which can realize the conversion of single and continuous action. It is simple and convenient to use.

Stop and run working position, easy to realize overload protection


03 The electrical appliances are controlled by PLC, with reliable performance; and automatic lubrication is used to lubricate the spindle intermittently, which is beneficial to extend

Service life of equipment


04 It has a wide range of applications, which can be used as processing equipment for metal recycling and processing units, and as a charge for factory casting workshops Metal cutting processing equipment for processing and mechanical construction industry

05. Using international imported accessories and materials, compact internal structure, high quality, high efficiency and low energy consumption;

06 Fully enclosed feeding, high safety performance. Use super large feeding port to feed enough materials;

07. PLC automatic fast cutting, unmanned operation, low cost and high efficiency;

08. Low cutting material restriction and wide range of material delivery. Uninterrupted feeding and continuous cutting;


III. PRODUCT PARAMTERS

CONTAINER TYPE SHEAR FOR CUTTING SCRAP METALS
Contact us! We would like to tell you more about our shearing system.

Jiangyin Huake Machinery Equipment Co., Ltd

Manufacturer:Jiangyin Huake Machinery Equipment Co., Ltd

ADD:NO.53Yungu Road, Changshou Industrial Zone, Zhouzhuang Town,Jiangyin, Jiangsu,China

QWS-800 HEAVT DUTY CONTAINER SHEAR

MAIN PARAMETERS

ietm no. paramyters
1

SHEARING CYLINDER

MODEL NO.

YG450/300-830

TRAVEL LENGTH

2sets
MAXIMUM THRUST 4000KN

QUANTITY

830 mm
2

CLAMPING CYLINDER

MODEL NO.

YG260/180-870

TRAVEL LENGTH

1set
MAXIMUM THRUST 1300KN

QUANTITY

870mm
3

HYDRAULIC SYSTEM PRESSURE

≤25.0Mpa
4

HOPPER SIZE(LxH)

2000X1400(mm)
5

SHEARING LENGTH

1400X450(mm)
6

Shearing frequency(empty load)

2~3次(min)
7 8-10t/h
8

Power Spec

380V/3PH,50Hz
9

Total Power

135KW
10

maximum shearing capacityΔb≤450Mpa


ROUND STEEL:Φ170mm
SQUARE STEEL:130X130mm
ANGLE STEEL:220X220X15mm
I-BEAM:320X132X15mm
11 Electromotor model YX3-225M-4 quantity 3SETS
Rated speed 1470 Rated power 45KW
12 Hydraulic pump Model HY250 Rated Pressure 3SETS

Nominal

Displacement

250ml/r Quantity 31.5Mpa
13

Hydraulic oil cooling ways

Water cooling

14

Oil tank volume

3800LITERS

15

Operation mode

Automatic plc , button control + remote control

16

Machine outer size( L W H)

6000X2300X2600mm


IV. product vedio on youtube:

See product vedio:
https://youtu.be/mAV2bZlKvpk
https://youtu.be/pzZMASbWPZM

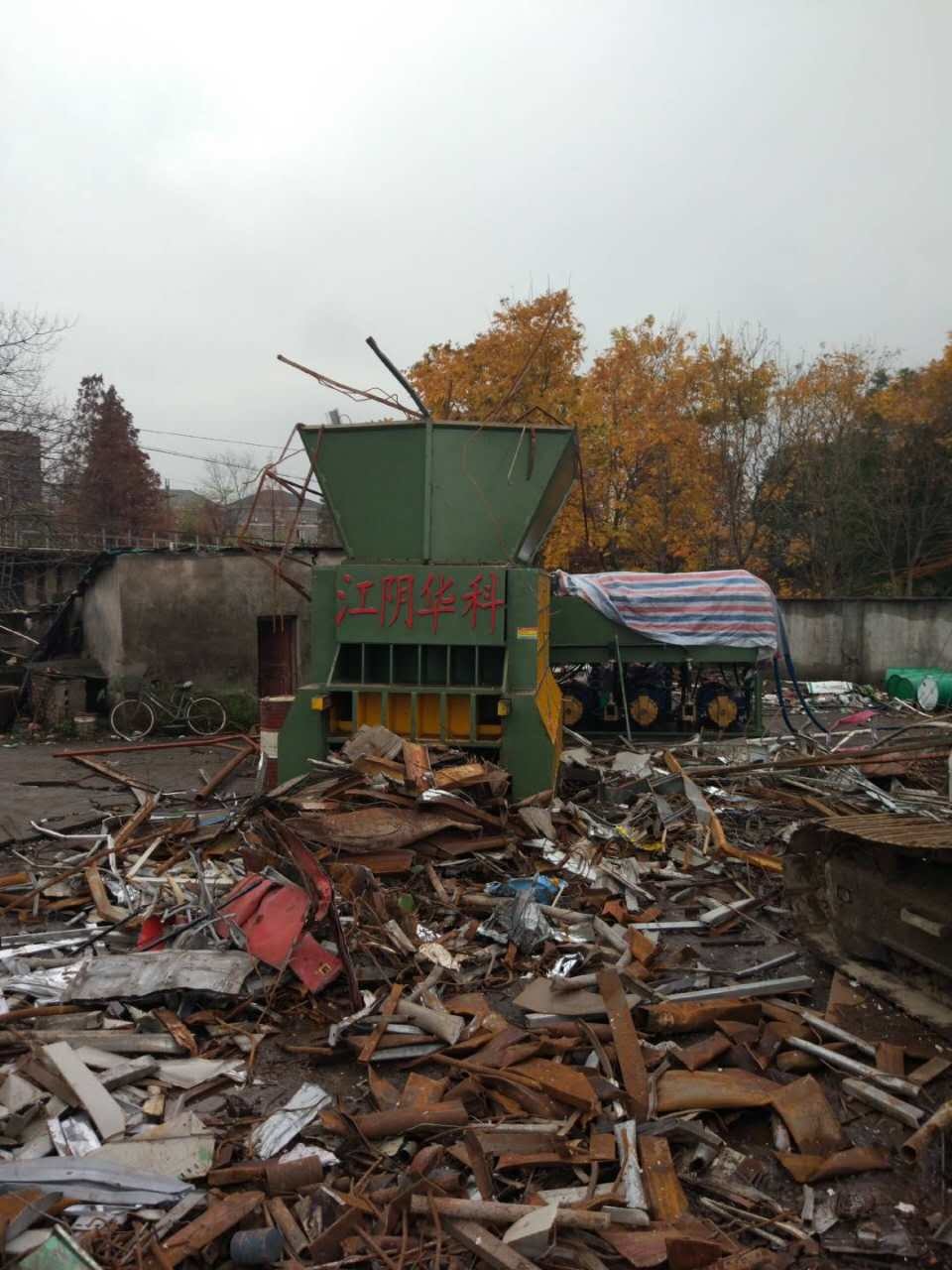

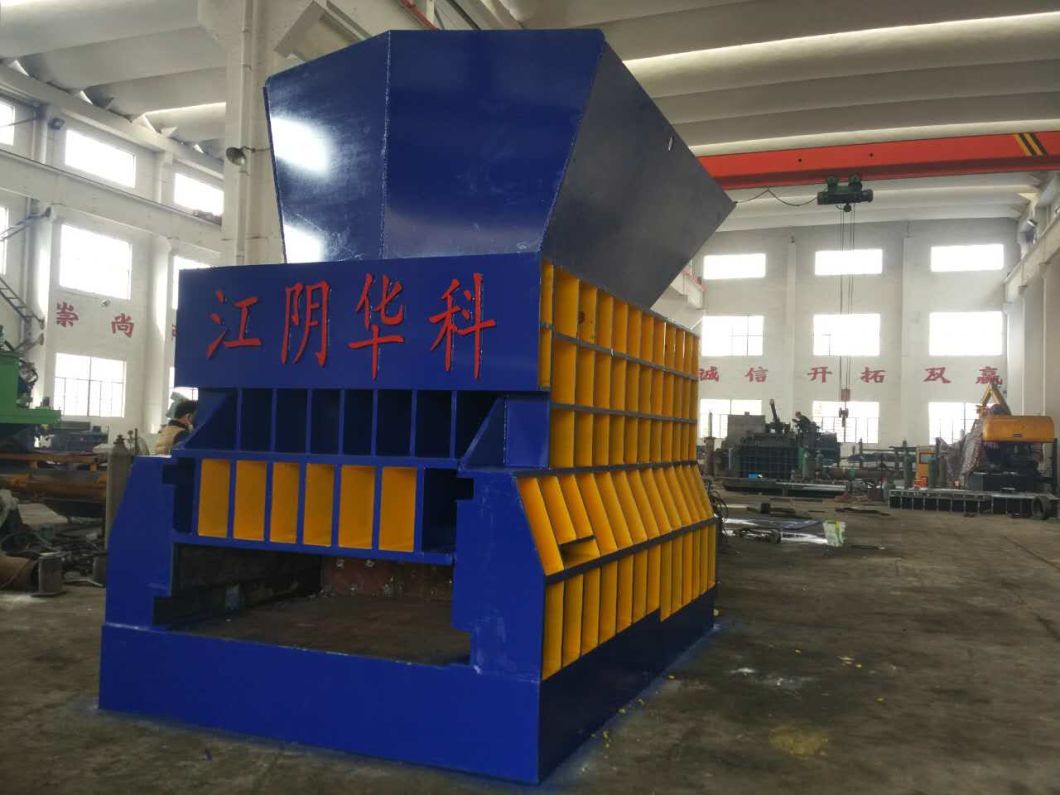

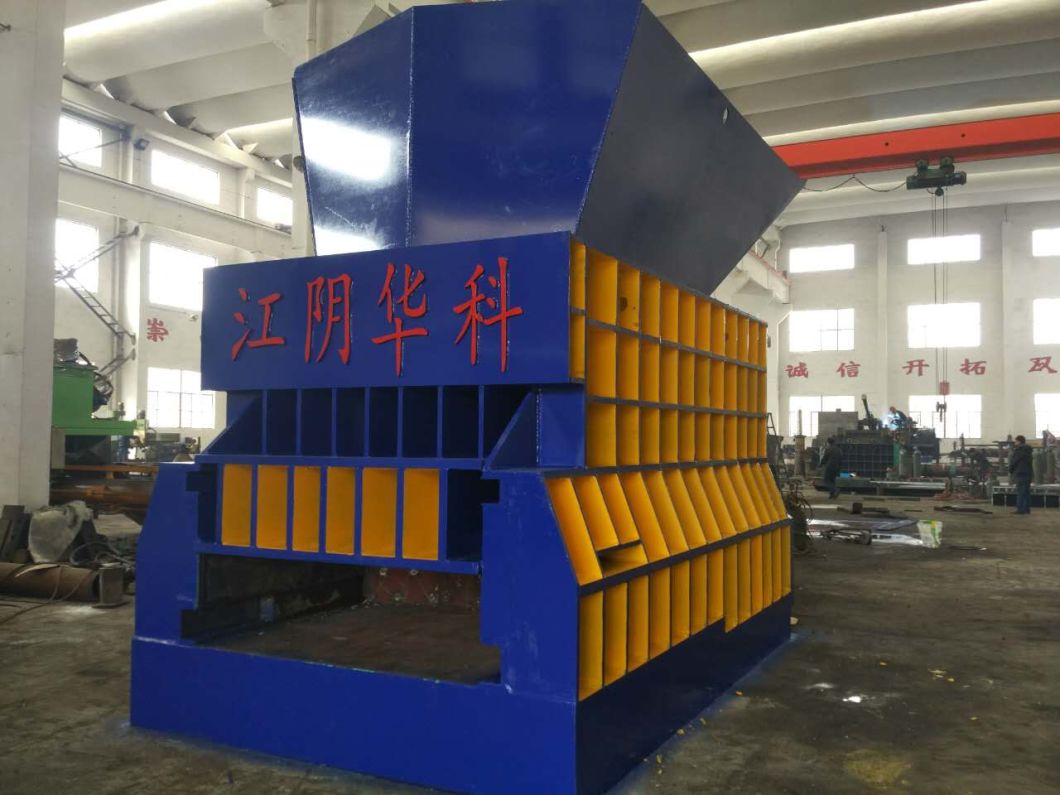

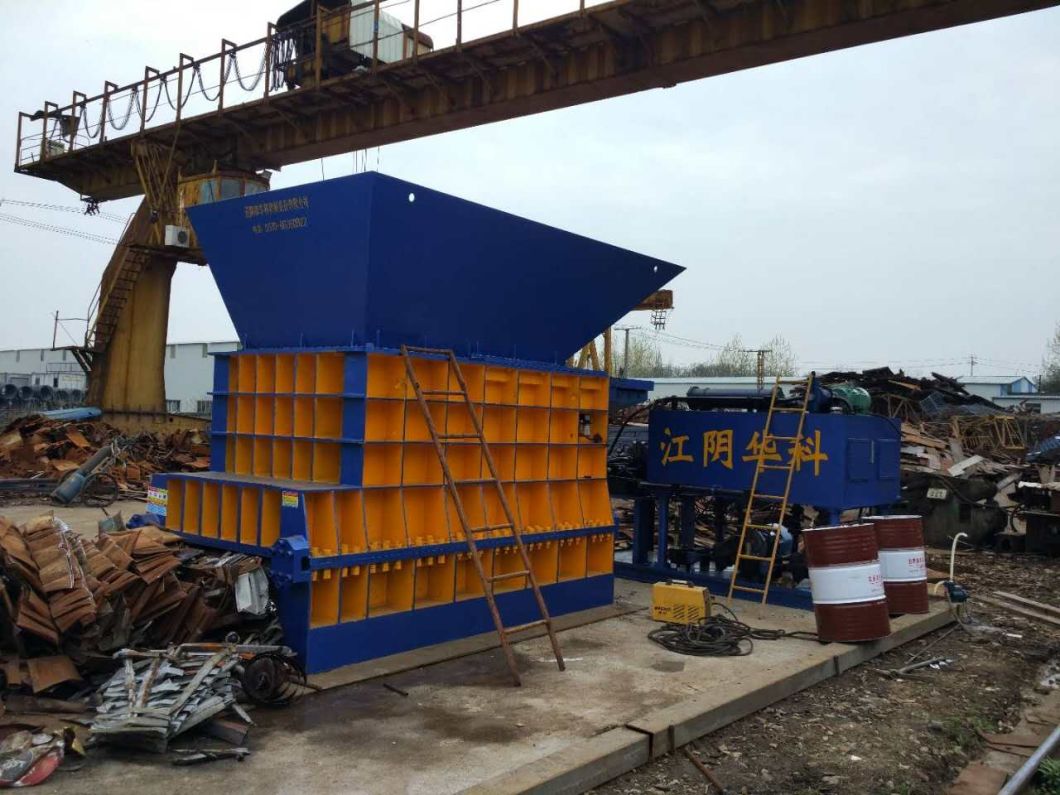

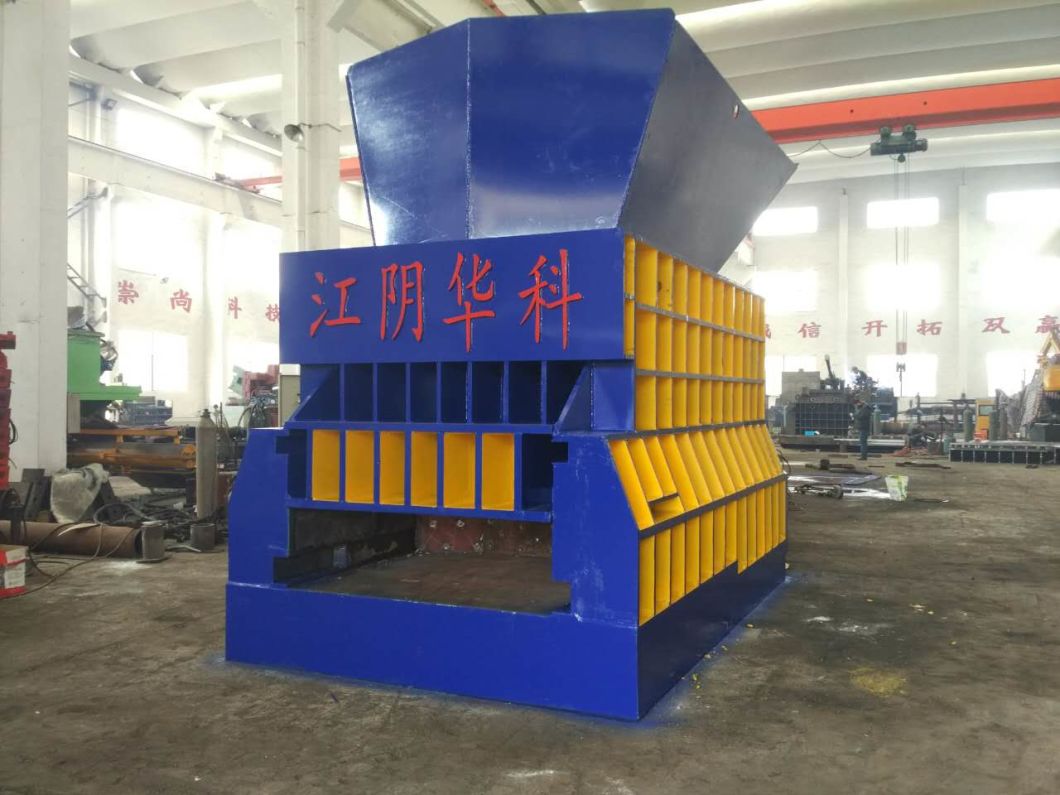

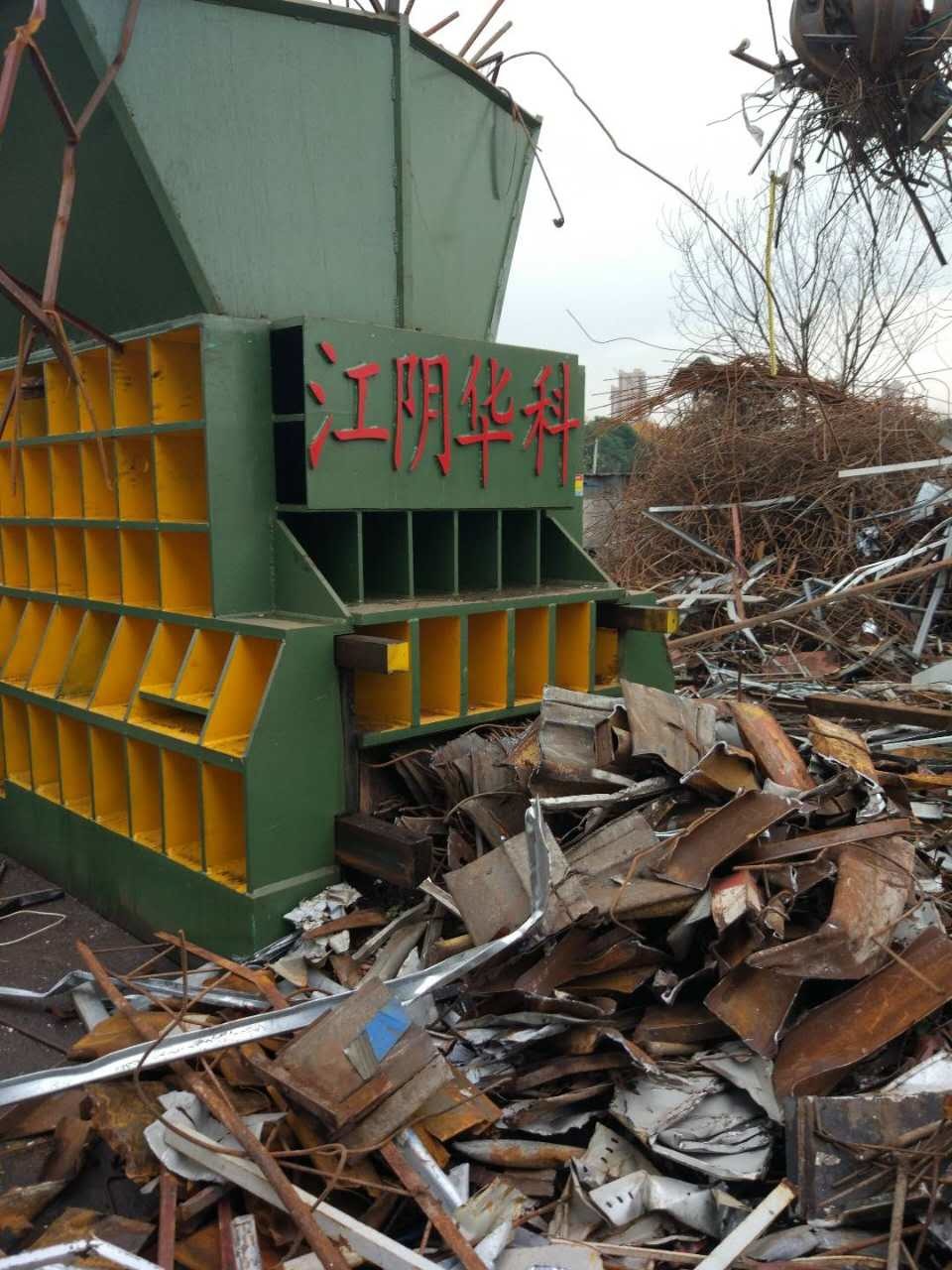

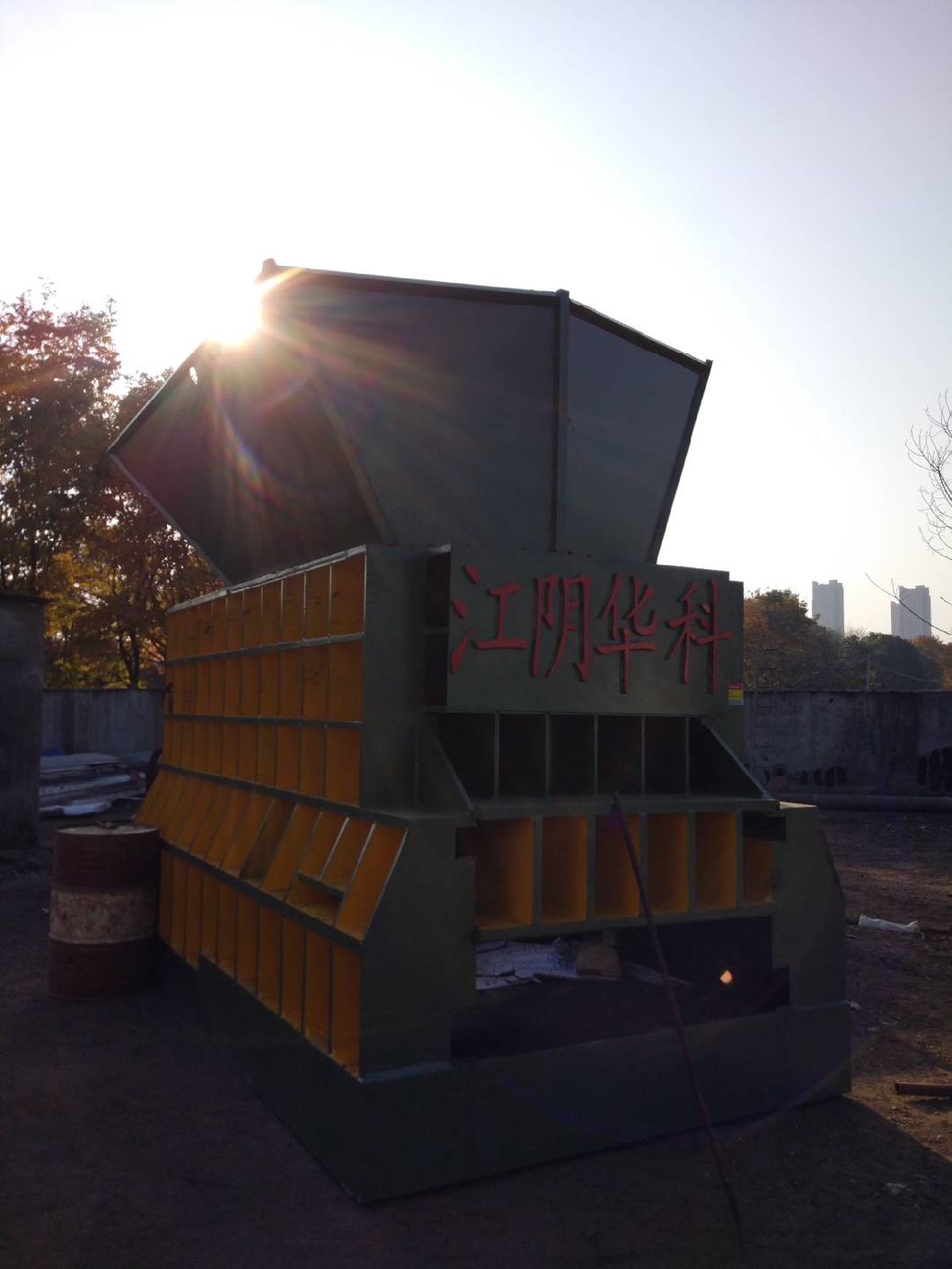

PRODUCT PICTURES:



To achieve the purpose of reducing land occupation, reducing total energy consumption in society, saving investment, protecting the ecological environment, and improving labor productivity. . It is mainly aimed at shredding super-large, super-thick and difficult-to-shred materials, and reduces the size of the material through shearing and squeezing. It has the characteristics of wide application range, low energy consumption and high output.


ABOUT US ;


1. Are you a manufacturer, trading company or a third party?

We are a manufacturer, and we have built up our company since 2005.


2. Where is your factory located?

Our factory address is : Jiangyin City, Jiangsu Province, China.


3. How can i get to your factory?

Our factory is near shanghai Airport, we can pick you up in the airport.


4. If i will need to stay in your place for few days, is that possible to book the hotel for me?

It's always my pleasure.


5. What is your minimum order quantity, can you send me samples?

Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, however,we can send you catalog, vedios and warmly welcome you to come visit our company.


6. What is the delivery time of your machine?

In general, the delivery time of our machine is about 30-50 days, customized machine will be delivered as the negotiation with our clients.


8. Can the machine be customized as our need, such as put on our logo?

Surely our machine can be customized as your need, Put on your logo is also available.


9. As the shipping period will take long time, how can you make sure the machine won't be broken?

Our machine is export worthy package, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to or Dedicated strapping fix the machine with the container.we also ship our machines through bulk ship especially our big machines , they all packaged well and fixed well


10. May i know which payment will be accepted by your company?

So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by T/T are available. LC


11. About the after-sale service, how can you solve the problems occurred of your overseas customer in time?

The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.


12. After we placing an order, will you arrange the installation of the machine at present?

All the machines will be tested well before delivered, so almost of them can be used directly by following our installation guide book

The installation guide book has very much pictures and clear instruction to make sure your engineer can set uo it very easily , also our machine are easy to be installed, we also offer 24 hours online service through whatsapp or wechat .99% customer set up machine easily without our engineer.if you customer needs our assistance, we will be pleased to arrange the installation, just we have to charge the cost of travelling.
