Y81F-160 Huake Hydraulic Scrap Press Machine 320X320
- Product Details:
Place of Origin: china
Brand Name: HUAKE
Certification: CE
Model Number: Y81T-160
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 10000-20000USD
Packaging Details: export worthy packing
Delivery Time: 30 days
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Supply Ability: 200PCS Per Year
- Order phone：+86-13003381217
- Inquiry
Detail
| Model NO.: | Y81F-160 | Fit For: | Various Scrap Metals |
| HS Code: | 84629190 | Export Ports: | Shanghai, China |
| Certification: | Ce SGS | Other Names: | Metal Compactor,metal Bundle Machine, Metal Baling Press |
| PLC Brand: | Omron By Japan | Bale Size: | 350X350; 400X400 320X320 At Your Choice |
| Main Cyl.Force(Ton): | 160 Tons Power Main Cylinder | Bale Weight(Kg): | 100-180 &80-130 |
| High Light: | Y81F-160 hydraulic scrap press machine 320X320 , 320X320 hydraulic scrap press machine , Huake Hydraulic Scrap Press Machine 320X320 | ||
Y81f-160 Huake Hot Sale Safe Hydraulic Automatic Scrap Metal Baler
Product Description
Performance and advantages
1. The main pressure of the metal baler ranges from 125 tons to 800 tons in 10 pressure levels, and the production efficiency ranges from 0.5 tons/hour to 20 tons/hour.
2. Two modes of operation can be selected: manual (manual valve) and fully automatic.
3. There are three types of package delivery: flip package, front package, side push package, and no package.
4. No foot screws are required for installation, and diesel engines can be used as power in places without power.
5. The side cylinder of manual model has differential fast technology, and each cylinder of PLC automatic control model has differential fast technology.
6. The size of the compression chamber (material box) and the size of the bale can be customized according to the needs of customers.
7. Water cooling, air cooler, heating system and other configurations can be selected to ensure stable oil temperature and normal operation of the equipment.
similar specifications to choose from for 160 tons power machine
| Model | Main Cyl.Force | Press Box Size | Bale Size | Bale Weight | Motor |
| (ton) | (mm) | (mm) | (kg) | (kW) | |
| Y81F-160A | 160 | 1600x1000x800 | 350x350 400x400 | 100-180 | 22 |
| Y81F-160B | 160 | 1600x1200x800 | 350x350 400x400 | 100-180 | 2x18.5 |
| Y81F-160C | 160 | 1600x900x700 | 320x320 | 80-130 | 2x15 |
typical detailed paramters
| Item | Parameter content | Remark | |||||||||||||
| 1 |
Master Pressure Cylinder |
Model | YG280/200 | Quantity | 1 | 160tons power | |||||||||
|
Nominal Thrust |
1600KN | ||||||||||||||
| 2 |
Side Pressure cylinder |
Model | YG200/140 | Quantity | 2 | 2*80tons power | |||||||||
|
Nominal Thrust |
800KN×2 | ||||||||||||||
| 3 |
Gate Lid Cylinder |
Model | YG140/100 | Quantity | 1 | 46tons power | |||||||||
|
Nominal Thrust |
460KN | ||||||||||||||
| 4 |
Bale DischargeCylinder
|
Model | YG125/80 | Quantity | 1 | 30tons power | |||||||||
|
Nominal Thrust |
300KN | ||||||||||||||
| 5 | Hydraulic system working pressure | ＜25.0MPa | |||||||||||||
| 6 | Material Box Dimension | 1600×1200×800mm | |||||||||||||
| 7 | Bale size | (400～700)×400×400mm | |||||||||||||
| 8 | Single cycle time | About 120 seconds | |||||||||||||
| 9 | Production Rate tons per hour | About 2.0-.3.5 TONS | |||||||||||||
| 10 | Bale discharge ways | PUSH -out ,AUTOMATIC CONTOL EITH REMOTE CONTROL | |||||||||||||
| 11 |
Electro motor |
Model | Y200-6 | Rated power | 22KW | ||||||||||
| Rated speed | 970rpm | Quantity | 1 | ||||||||||||
| 12 | Hydraulic pump | Model | YCY160 | Quantity | 1 | ||||||||||
|
Nominal Displacement |
160ml/r | Rated Pressure | 31.5MPa | ||||||||||||
| 13 | WATER COOLER | Model number | GLC -6 | Cooling effect | 6 sauqre meters | ||||||||||
| 14 | Production rate | 2.5-4.5 tons per hour | |||||||||||||

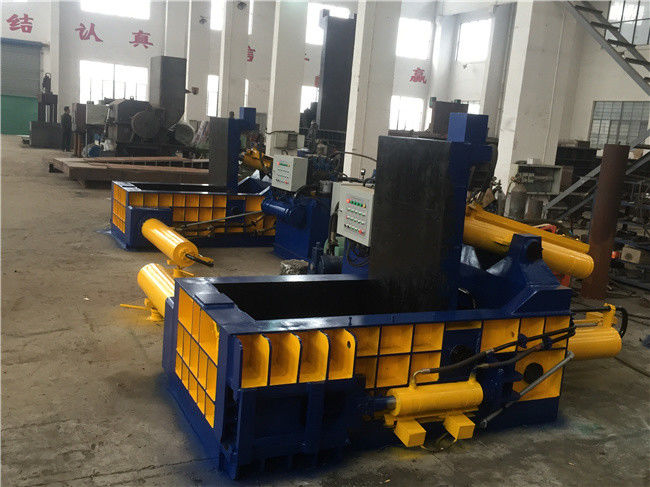

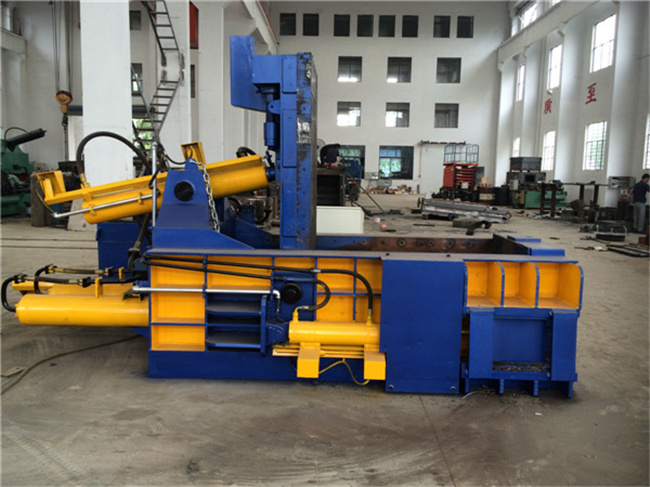

Y81f-160 Hydraulic Automatic Scrap metal Baler pictures
Watch The Video
Youtube:https://www.youtube.com/watch?v=QHD1xZvVTQY
Quick Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Huake
Service : the machine are always tested and assembled before shipping,customer only need to follw simple steps to start .Engineers available on phone 24 hours ,unsolvable problem come to fix.
Model Number: Y81T-160
Color: User Defined
Packaging & Delivery

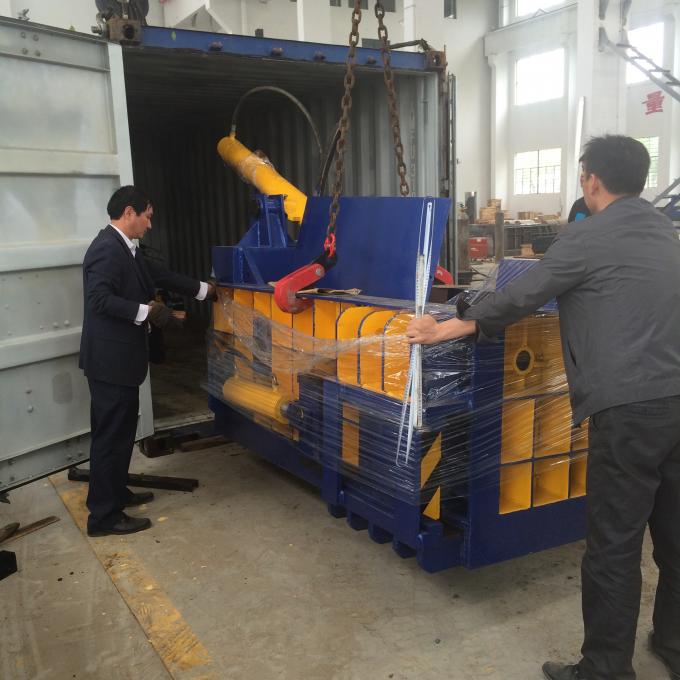

Packaging Details: export worthy packing, loading container directly.
Delivery Detail: 40-45days
Features:
A) Hydraulic drive, manual valve operation or PLC control...
B) Bale-discharging: "turn-out", "push-out", "forward-out" & manual discharging.
C) Options for different force, press box size, bale shape & size
D) Electrical motor, diesel engine or generator for power.
Applications:
Y81 series of hydraulic scrap balers are applied in steel mills, recycling plants, ferrous & non
-ferrous smelting industry to press scrap metal (steel, copper, aluminum, stainless steel, discarded automobiles, etc)
Into acceptable furnace charges in shape of cuboids, cylinders & octagons.
How to choose your baler correctly?
We will ask you to offer some details
Like what material you need to bale. Pictures best,
How many tons per hour output is needed.
And bale size restrictions
Bale ejection ways preference.
Other machines on sites .etc
Then we will give a most suitable solution for you.
we will also offer similar user sites vedio for your reference, maybe in your same country we have users also.
