typical models for choice.

Model	Max.Cutting Force(KN)	Blade length(mm)	Max.Cutting Size(mm)	Shearing Frequency(times/min)	Motor(kW)
Q43- 630	630	600	30 x 30 Φ 35	8 - 12	7.5
Q43- 1000	1000	800	35 x 35 Φ 40	8 - 12	11
Q43-1200	1200	600	40 x 40 Φ 45	8 - 12	15
Q43-1600	1600	700	45 x 45 Φ 50	6 - 10	18.5
Q43-2000	2000	800	55 x 55 Φ 63	6 - 10	22
Q43-2500	2500	1000	65 x 65 Φ 73	6 - 8	30
Q43-3150	3150	1200	80 x 80 Φ 85	6 - 8	37
Q43-4000	4000	1500	90 x 90 Φ 95	6 - 8	44
Q43-5000	5000	1600	100x100 Φ 100	6 - 8	60

Detailed parameters

Jiangyin Huake Machinery Equipment Co.,Ltd

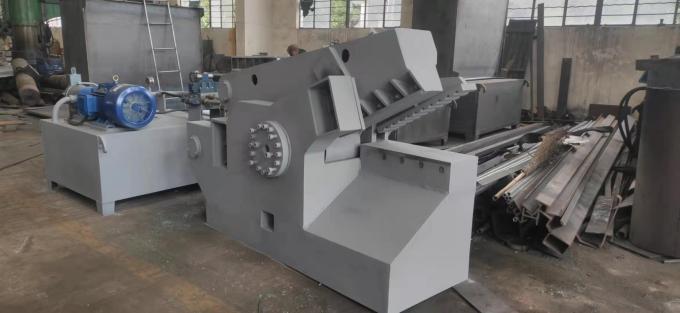

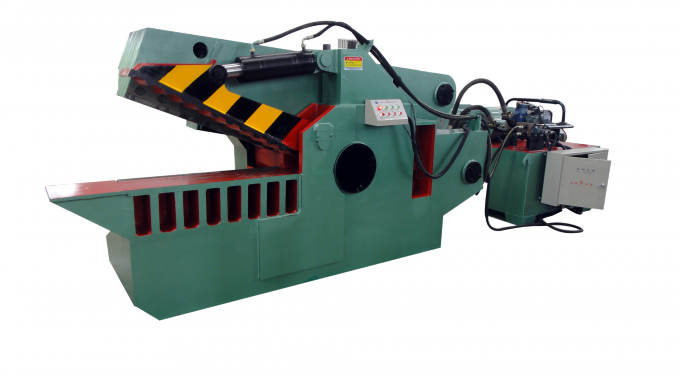

Q43-3150 Metal Shear machine

item no.

parameters

remarks

1

Main Pressure Cylinder

Model number

YG260/180-370

Travel length

400㎜

Maximum shear force

3150KN

Quantity

1

2

Clamping Pressure Cylinder

Model number

YG125/80-160

Travel length

100㎜

Maximum pressing force

260KN

Quantity

1

3

Blade length

800×100×50mm

2pcs

L×W×H

4

Shear material

￠85

5

Hydraulic system working pressure

≤21MPa

6

Total power of equipment

22+22kw

7

Rated pressure of oil pump

31.5MPa

8

Single cycle working time

≈8 seconds

9

Power Specifications

410-440V/3P,50Hz

10

Electric motor

model

Y200L2-6

Quantity

2 sets

Rated speed

970 rpm

rated power

22+22kw

11

model

160YCY14-1B

Quantity

2sets

Rated flow speed

160 ml/r

Rated pressure

31.5MPa

Shearing range for different materials

Item

Shear material

spec(mm)

Item

Shear material

spec(mm)

1

Round steel

Φ80

4

Channel steel

280×124×11.5

2

Square steel

70×70

5

I-beam

250×118×10

3

Angle steel

160×160×12

6

Steel plate

20*700 /40*300

Quick Details
Watch The Video
Youtube: https://www.youtube.com/watch?v=5kGiF25fJbQ&feature=youtu.be

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Huake
Model Number: Q43-630
Service : the machine are always tested and assembled before shipping,customer only need to follow simple steps to start .Engineers available on phone 24 hours ,unsolvable problem come to fix.
Color: User Defined

Packaging & Delivery

Packaging Details: Nude packing, loading container directly!
Delivery Detail: 20-30 days


Features:
1 Hydraulic drive, simple operation&easy maintenance.
2 Options for different force&blade length.
3 No footing bolts

PICTURES

plant and service

We have combined our own technical advantages and used years of experience to develop various Scrap Metal shearing machien (Quality Guarantee). With advanced production technology and high-quality supporting services, our products are appreciated by our customers. We carry the concept of manufacturing products in a harmonious symbiosis between people and the environment. We, with open arms, invite all interested potential buyers to visit our web-site or get in touch with us immediately for further information and facts.

customer service: 24-hour online service
pre-sale: Tailor made Technical cooperation

vedio plant tour is also highly acceptable.

About US

1. Are you a manufacturer, trading company or a third party?

We are a manufacturer, and we have built up our company since 2005.

2. Where is your factory located?

Our factory address is : Jiangyin City, Jiangsu Province, China.

3. How can i get to your factory?

Our factory is near shanghai Airport, we can pick you up in the airport.

4. If i will need to stay in your place for few days, is that possible to book the hotel for me?

It's always my pleasure.

5. What is your minimum order quantity, can you send me samples?

Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, however,we can send you catalog, vedios and warmly welcome you to come visit our company.

6. What is the delivery time of your machine?

In general, the delivery time of our machine is about 30-50 days, customized machine will be delivered as the negotiation with our clients.

8. Can the machine be customized as our need, such as put on our logo?

Surely our machine can be customized as your need, Put on your logo is also available.

9. As the shipping period will take long time, how can you make sure the machine won't be broken?

Our machine is export worthy package, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to or Dedicated strapping fix the machine with the container.we also ship our machines through bulk ship especially our big machines , they all packaged well and fixed well

10. May i know which payment will be accepted by your company?

So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by T/T are available. LC

11. About the after-sale service, how can you solve the problems occurred of your overseas customer in time?

The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.

12. After we placing an order, will you arrange the installation of the machine at present?

All the machines will be tested well before delivered, so almost of them can be used directly by following our installation guide book

The installation guide book has very much pictures and clear instruction to make sure your engineer can set uo it very easily , also our machine are easy to be installed, we also offer 24 hours online service through whatsapp or wechat .99% customer set up machine easily without our engineer.if you customer needs our assistance, we will be pleased to arrange the installation, just we have to charge the cost of travelling.
