CE 500 Ton Scrap Metal Shearing Machine Pre Pressure Quickly
- Product Details:
Place of Origin: china
Brand Name: HUAKE
Certification: CE
Model Number: QHK-500
Payment & Shipping Terms:
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Sets Per Year
- Order phone：+86-13003381217
- Inquiry
Detail
| Model NO.: | QHK-500 | Origin: | China |
| HS Code: | 84629190 | Port: | Shanghai, China |
| Type: | Scrap Metal Shear Fit For Various Types Of Material | Automation: | Automatic |
| Certification: | CE | Transport Package: | Load Container Directly |
| Specification: | PRESSURE 500 TONS/630 TONS | Trademark: | HUAKE |
| High Light: | 500 Ton Scrap Metal Shear , OEM scrap steel shear HUAKE , OEM scrap steel shear | ||
500tons power box shears Scrap Metal Shear Metal Shearing Machine
[Features]
1, the whole structure can be transported in a pile yard faster transfer;
2, configurable remote control operation, high security;
3, pre-pressure quickly, high shear efficiency;
4, working at the hardened bottom, do not dig foundation pit by grasping steel grab or conveyor belt feeding;
5, cut thin and light materials, the scope: aluminum, copper and aluminum and other metal strip / cable, automotive shell, hydraulic fuel tank and other thin boxes, barrels and paint barrels and other construction waste, PVC pipe / with plastic products
INTRODUCTION:
Box shearing machine is an efficient scrap steel and scrap metal processing equipment. The original designer of the box shear comes from Europe. It has a compact structure and a one-piece design for easy movement. It can be controlled by a hybrid of an engine and an electric motor, or it can be controlled separately by an engine or an electric motor.
Product Description
See product vedio:
https://youtu.be/mAV2bZlKvpk
https://youtu.be/pzZMASbWPZM

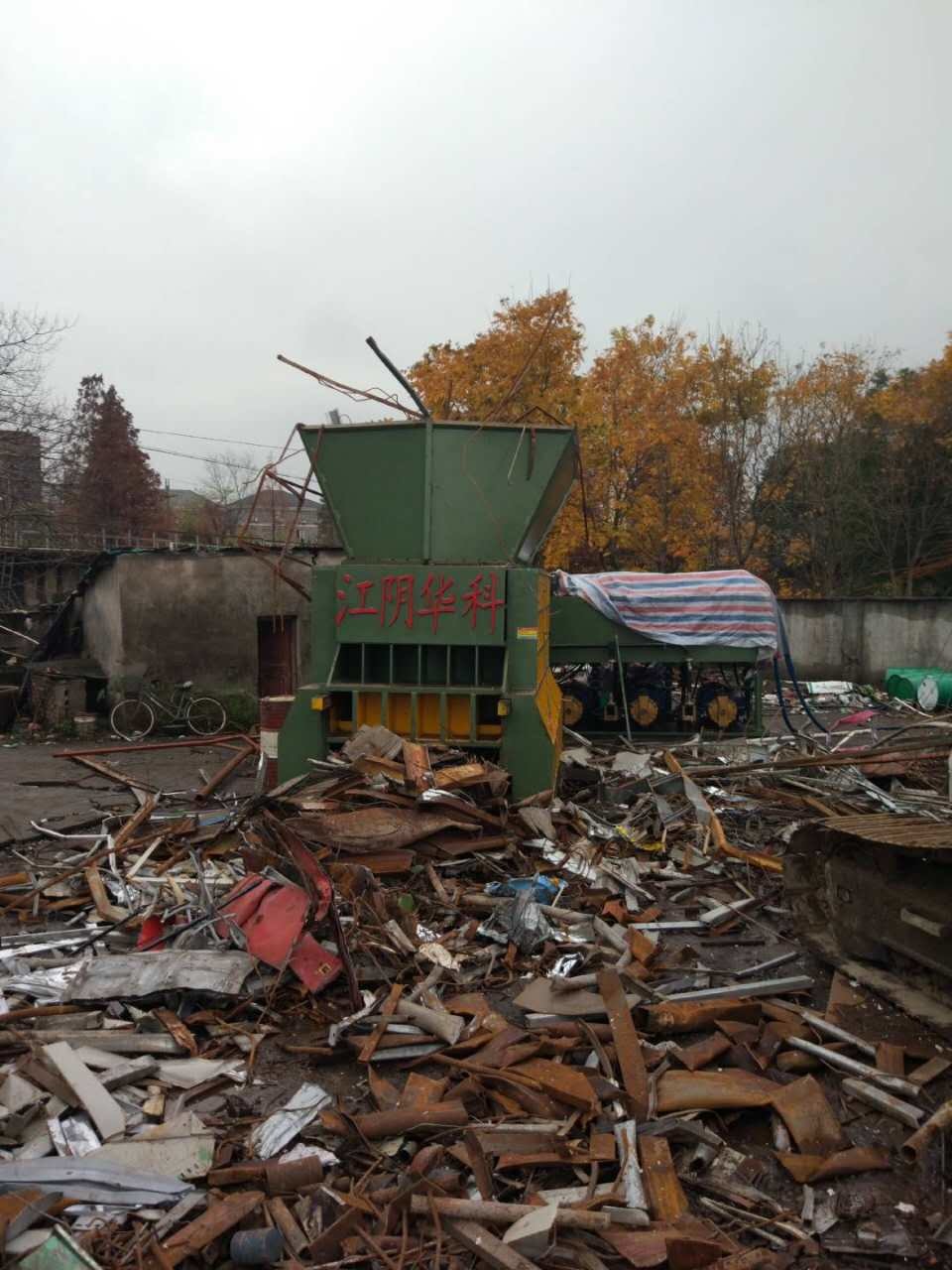

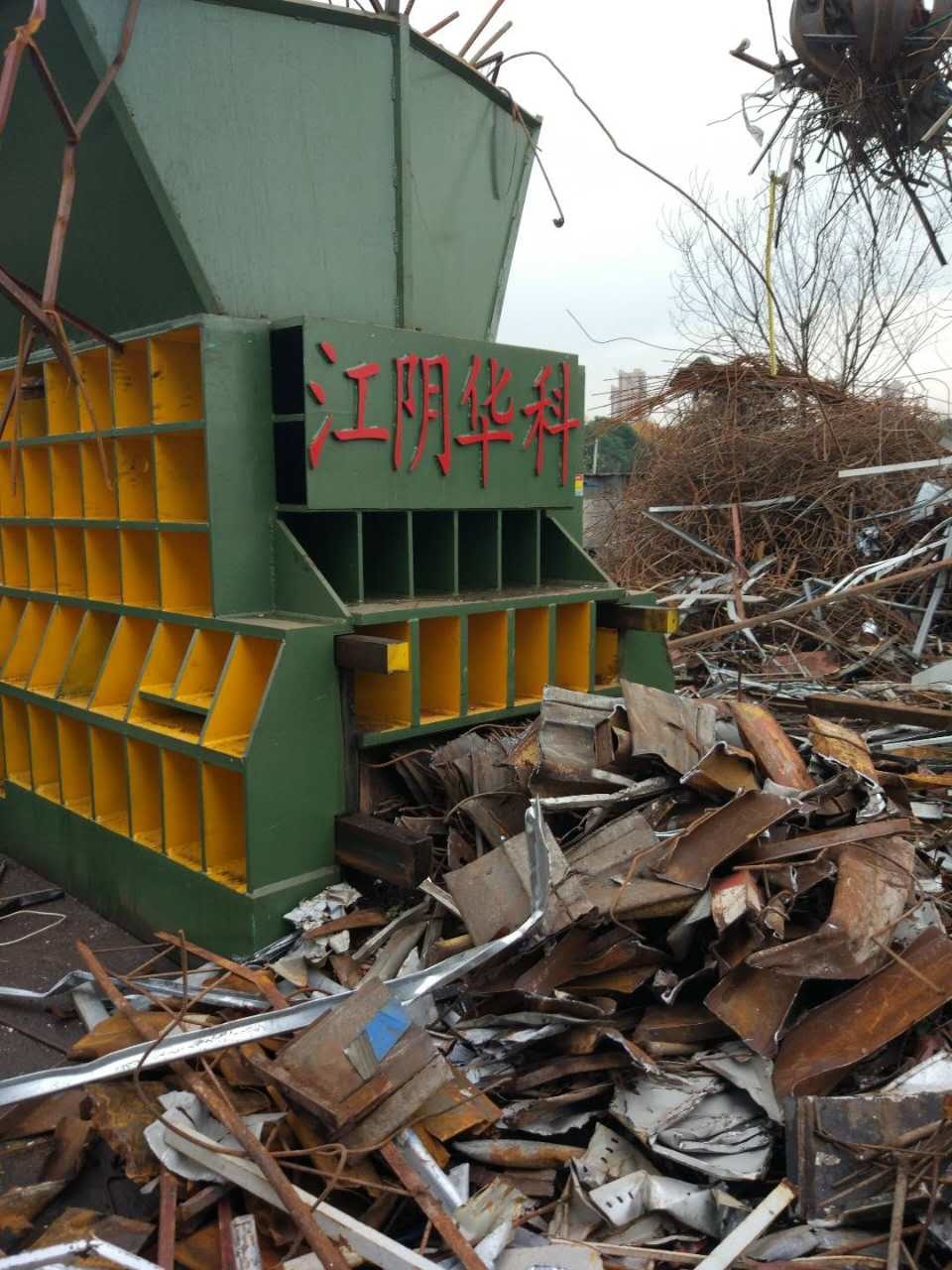

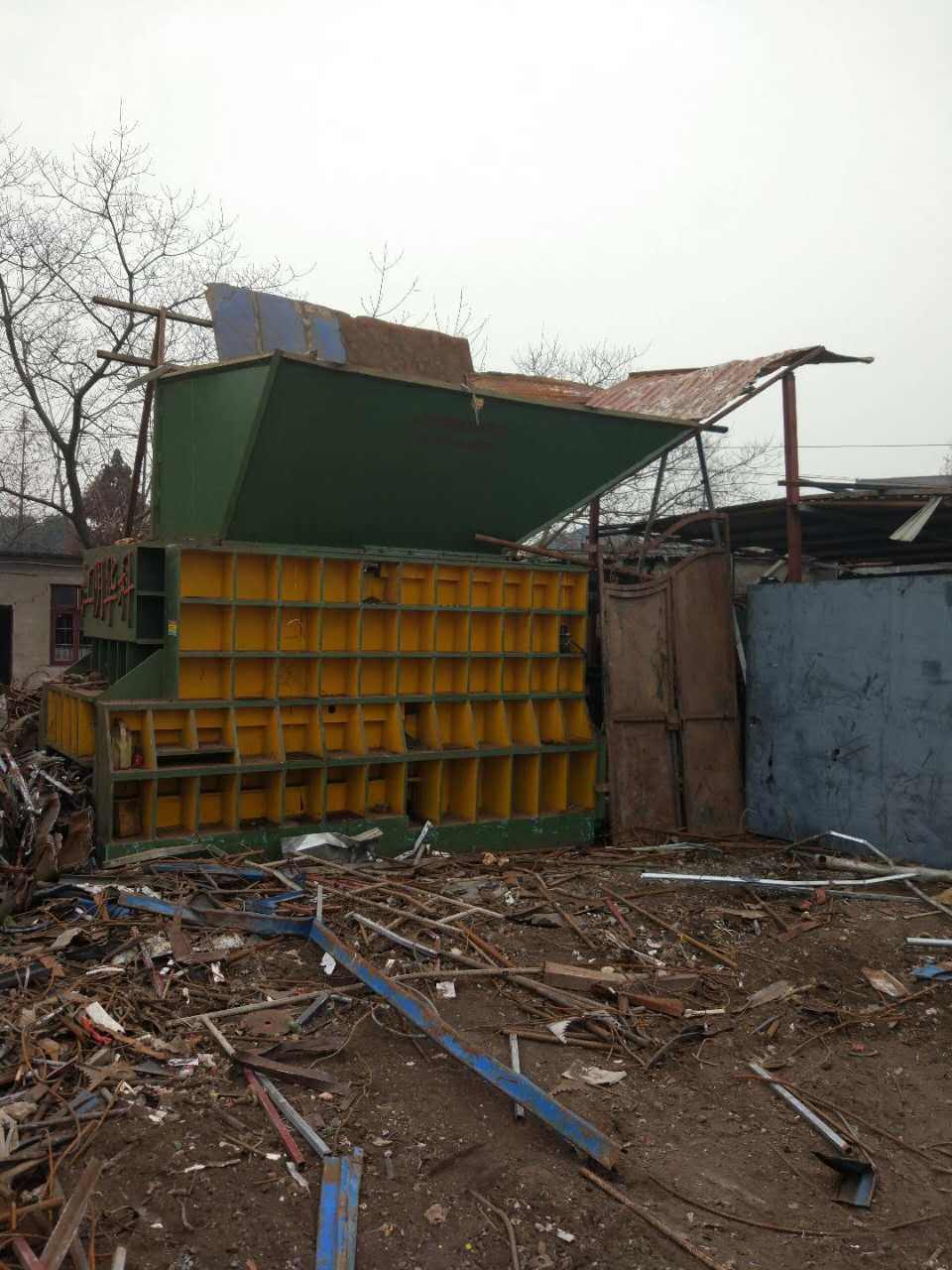

CONTAINER TYPE SHEAR FOR CUTTING SCRAP METALS
metal shear is applicable for cutting the metal shaped in different cross section like round, square, channel, angle, I shape, plate and various waste structural metal at cold state. It brings convenience to the baling, storage and transporation of scrap metal materials, also offers qualified furance charge for smelting plant. With large application range, this machine is commonly used as the processing equipment in the metal recycling unit, casting room of factory and machinery construction industry.
Box shears, also known as horizontal shears, are a new type of shearing equipment that can process large amounts of scrap metal. Due to the continuous progress of society and the continuous increase of labor costs, operators are increasingly eager to save resources and improve efficiency, which prompted the birth of box shears.
Our shear has speeder, when unload, one cylinder will drive the main shearing cylinder to move, with more than 50% faster speed, save more than 30% time.
ADVANTAGES ；
1. Low operating cost, high efficiency, no pre-gap, less operation, and continuous feeding.
2. The self-enclosed operation is fully controlled by PLC, which greatly improves the work efficiency.
3. Loading and transportation by towing vehicles.
4. Small size, integrated type, high stability.
5. The box shear can be controlled by an engine.
6. Low investment and operating costs.
7. All inner surfaces of box shears have a wear plate cover, so there is less wear.
8. The waste material is added from above, and the waste material is compressed by the pre-compression cylinder
and automatically slides down and is sheared by the shearing cylinder. This design greatly improves the efficiency and safety of the equipment.

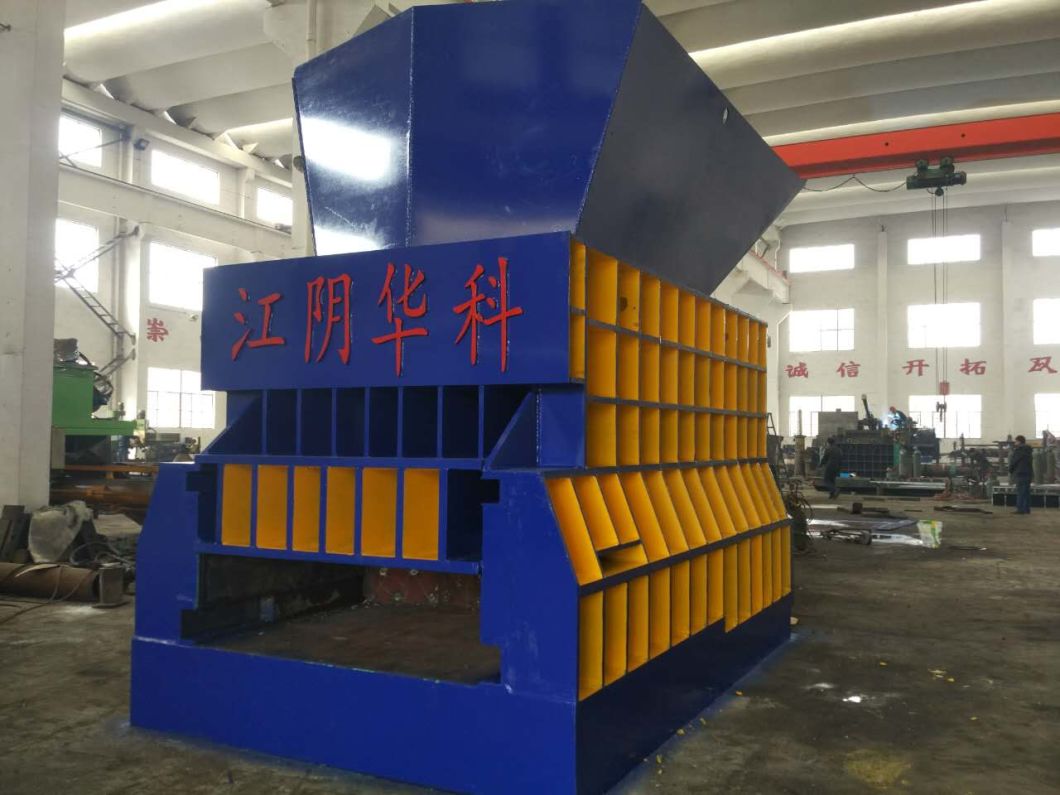

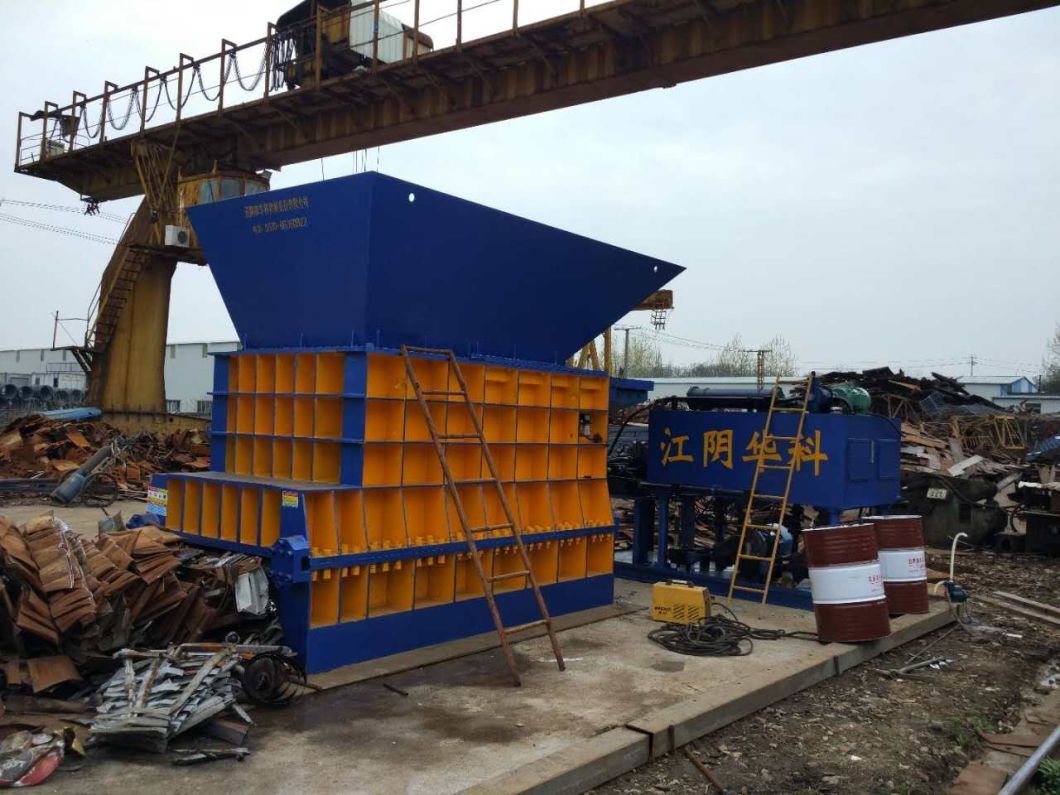

HYDRAULIC SCRAP METAL STEEL CONTAINER BOX TYPE SHEAR
PARAMETERS:
CONTAINER TYPE SHEAR FOR CUTTING SCRAP METALS
Contact us! We would like to tell you more about our shearing system.
| Item No. | PARAMETERS | REMARKS | |||||||||
| 1 | SHEARING CYLINDER | Model | YG340/220-870 | Travel length | 870mm | 250tons *2=500 tons | |||||
|
Nominal Thrust |
2500X2kN | Quantity | 2 | ||||||||
| 2 | MATERIAL HOLDING CYLINDER | Model | YG240/160-890 | Travel length | 890mm | 125tons pressure | |||||
|
Nominal Thrust |
1320KN | Quantity | 1 | ||||||||
| 4 | Material Box Dimension(L×W×H) | 2200×1400×400 mm | |||||||||
| 5 | Hydraulic system working pressure | 25MPa | |||||||||
| 6 | Hopper size | 2200X1400(mm) | |||||||||
| 7 | Cutting length/maximum holdling range | 1400mm / 450mm | |||||||||
| 8 | Total power | 75kW | |||||||||
| 9 | Power specification | 380V/3PH,50Hz | |||||||||
| 10 | Cutting angle | V shape+9 degrees | |||||||||
| 13 |
maximum cutting range Δb≤450Mpa |
Round steel:φ150mm | FROM MIDDLE PISITION OF THE BLADES | ||||||||
| Square steel bar:100×100mm | |||||||||||
| Steel plate:40×600mm | |||||||||||
| 14 | Shearing frequency | 2-3times/minute | |||||||||
| 16 | Machine outer size | 6000×2220×3550mm | |||||||||
| 18 | Oil tank volume | 3500 litres | |||||||||
| 20 | Electric Motor | Model | Y225M-6 | Rated power | 45 +30KW | ||||||
| Rated speed | 970 rpm | Quantity | 1+1 | ||||||||
| 21 | Hydraulic pump | Model | HY250/YCY160 | Rated Pressure | 31.5MPa | ||||||
|
Nominal Displacement |
250ml/r/160ml/r | Quantity | 1+1 | ||||||||
