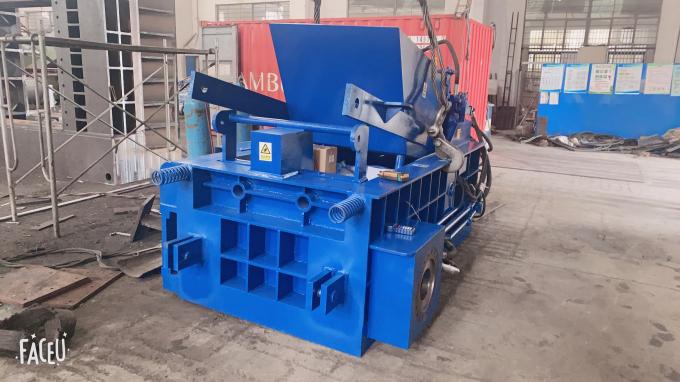

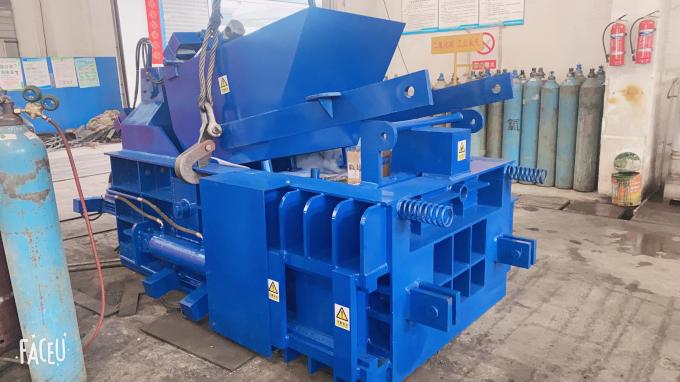

Y81T-125 Small Hydraulic Metal Baler Machine For Aluminum

  • Product Details:
    Place of Origin: china
    Brand Name: HUAKE
    Certification: CE SGS
    Model Number: 81-125
    Payment & Shipping Terms:
    Minimum Order Quantity: 1 SET
    Price: 8000-20000 USD
    Packaging Details: EXPORT WORTHY PACKAGE
    Delivery Time: 35-40 DAYS
    Payment Terms: L/C, T/T
    Supply Ability: 200PCS Per Year
Order phone:+86-13003381217
Inquiry

Detail

Model NO.: Y81F-125A HS Code: 84629190
Transport Package: Regular Container Can Load 2 Sets Specification: CE SGS
Advantage: Easy Installation, Can Add Hopper , Saves Labor Cost Origin: Jiangsu China
Color Of Paint: Anti -rust Paint At Customer Choice Optional Choice: Air Cooler Or Air Heater
High Light: Y81T-125 hydraulic metal baler machine ,  Small hydraulic metal baler machine ,  125t scrap aluminum baler
Product Description

Y81T-125 small Hydraulic Metal Baler machine for aluminium ubc cans china 125 tond Turn out bale discharge baler

Applications:

Y81T-125 small Hydraulic Metal Baler machine for aluminium ubc cans china 125 tond Turn out bale discharge baler
Y81 series of hydraulic scrap balers are applied in steel mills, recycling plants, ferrous & non
-ferrous smelting industry to press scrap metal (steel, copper, aluminum, stainless steel, discarded automobiles, etc)
Into acceptable furnace charges in shape of cuboids, cylinders & octagons.

VARIOUS spec to choose from :

Y81 SERIES METAL HYDRAULIC BALER
Turn-out Series
Model Nominal Force (kn) Press Box Size (L*W*H)(mm) Bale Size (W*H) (mm) Bale Weight (kg) Production (T/h) Power (kw)
Y81F-63 630 1000*600*500 200*200 20~25 0.9~1.1 7.5
Y81F-100 1000 1000*700*550 250*250 45~55 1.1~1.3 11
Y81F-125A 1250 1200*700*600 300*300 60~80 1.2~1.5 15
Y81F-125A1 1250 1200*800*600 300*300 60~80 1.2~1.6 15
Y81F-125A2 1250 1200*900*600 300*300 60~80 1.2~1.6 15
Y81F-125B 1250 1200*700*600 250*250 45~60 1.2~1.5 15
Y81F-125B1 1250 1200*800*600 250*250 45~60 1.2~1.6 15
Y81F-125B2 1250 1200*900*600 250*250 45~60 1.2~1.6 15
Y81F-125AD 1250 1400*800*700 300*300 65~80 1.5~2.0 18.5
Y81F-160 1600 1400*900*700 320*320 80~110 2.2~3.0 22
Y81F-160A 1600 1600*1000*800 400*400 110~150 2.2~3.0 22
Y81F-160B 1600 1600*1200*800 400*400 130~180 2.6~3.9 15*2
Y81F-200 2000 1600*1000*800 400*400 110~150 2.2~3.0 37
Y81F-200A 2000 1600*1200*800 400*400 130~180 2.8~3.9 37
Y81F-200B 2000 1800*1400*800 450*450 130~180 2.8~3.9 37
Y81F-250A 2500 2000*1400*900 500*500 190~280 3.5~5.0 22*2
Y81F-250B 2500 2000*1750*1000 500*500 200~380 4.0~6.5 22*2
Y81F-250BKC 2500 2000*1750*1000 450*450 160~250 3.2~4.5 22*2
Y81F-315 3150 2500*2000*1200 600*600 250~650 4.5~7.0 45*2
Y81F-400 4000 3500*2000*1200 500*600     45*2
Y81F-500 5000 3000*2500*1200 600*700     55*2
Side Push-out Series
Model Nominal Force (kn) Press Box Size (L*W*H)(mm) Bale Size(W*H)(mm) Bale Weight(kg) Production(T/h) Power (kw)
Y81T-63 630 1000*600*500 200*200 28~35 0.9~1.1 7.5
Y81T-100 1000 1000*700*550 230*230 42~53 1.2~1.5 11
Y81T-125A 1250 1200*700*600 300*300 65~80 1.2~1.8 15
Y81T-125B 1250 1200*700*600 250*250 50~62 1.2~1.5 15
Y81T-125AD 1250 1400*800*700 300*300     18.5
Y81T-160 1600 1400*900*700 320*320 70~85 1.5~2.2 22
Y81T-160A 1600 1600*1000*800 400*400 110~150 2.0~3.5 22
Y81T-160B 1600 1600*1200*800 400*400 130~180 2.0~4.0 15*2
Y81T-200A 2000 1600*1200*800 450*450 140~190 2.5~4.5 37
Y81T-200B 2000 1800*1400*900 450*450 210~300 3.0~5.0 22*2
Y81T-250A 2500 2000*1400*1000 500*500 230~270 4.0~6.3 22*2
Y81T-250B 2500 2000*1750*1000 500*500 250~280 5.0~6.3 22*2
Y81T-315A 3150 2000*1400*1000 500*500 250~360 4.0~6.5 37*2
Y81T-315B 3150 2000*1750*1000 500*500 260~370 5.0~7.0 37*2
Y81T-400 4000 3000*2000*1200 500*600 250~380 6.0~8.0 45*2
Y81T-500R 5000 2500*1300*800 500*500 300~500 6.0~10.0 22+37
Forward-out Series
Model Nominal Force (kn) Press Box Size (L*W*H)(mm) Bale Size (W*H)(mm) Bale Weight (kg) Production(T/h) Power (kw)
Y81Q-100 1000 1100*600*550 600*220 40~60 1.0~1.8 7.5
Y81Q-135A 1350 1400*600*600 600*240 50~75 1.5~2.8 22
Y81Q-135B 1350 1100*600*600 600*240 45~65 1.2~1.7 15
Y81Q-160 1600 1600*800*600 800*280 60~90 2.0~3.0 22
Y81Q-200 2000 1600*800*700 800*280 90~110 2.5~3.5 30
Y81Q-250 2500 1750*900*800 900*350 110~130 4.5~6.0 22*2

advantages

1. We have installed the guardboard on the gate to make the machine stronger and wear resistant, and extend the machine service life.

2. We use blades on the door sizes and feed box sides. The blade can cur extra scrap when machine working better to protect the machine.

3. We use high pressure soft oil pipe,which has better stability ,and anti- vibration protection.

4. Our machine has buffer technology to reduce the impact on machine parts.

quick details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Huake
Service : the machine are always tested and assembled before shipping,customer only need to follow simple steps to start .Engineers available on phone 24 hours ,unsolvable problem come to fix.
Model Number: Y81F-125
Condition: New
After-sales Service Provided: Engineers available to service machinery overseas
Color: User Defined
Packaging & Delivery
Packaging Detail: Nude packing, loading container directly.
Delivery Detail: 15-20days


Features:
A) Hydraulic drive, manual valve operation or PLC control...
B) Bale-discharging: "turn-out", "push-out", "forward-out" & manual discharging.
C) Options for different force, press box size, bale shape & size
D) Electrical motor, diesel engine or generator for power.

Watch The Video

http://youtu.be/KOw2GufZuEc

Questions and answers:

. Q:Can I add my logo on the machines?

A: Yes,OEM and ODM are available for us.

But you should send us the Trademark authorization letter.

2. Q:How can i get the after-service?

A: We will send you the spare parts by free if the problems caused by us.

If it is the men-made problems,we also send the spare parts,but you should pay.

3. Q:Do you have inspection procedures for machines?

A:100% self-inspection before packing

4. Q:Can I have a visit to your factory before the order?

A:Sure,welcome to visit our factory.
Here is our factory address:No.53 , Yungu Road, Jiangyin City, Jiangsu Province, China.

5. Q: Can we order one set machine?

A:Yes, you can.

we are close to 20 years experienced manufacturer of scrap metal baler , scrap metal shear ,scrap metal cursher machine.

can offer good quality machine and excellent asfter sale service.
