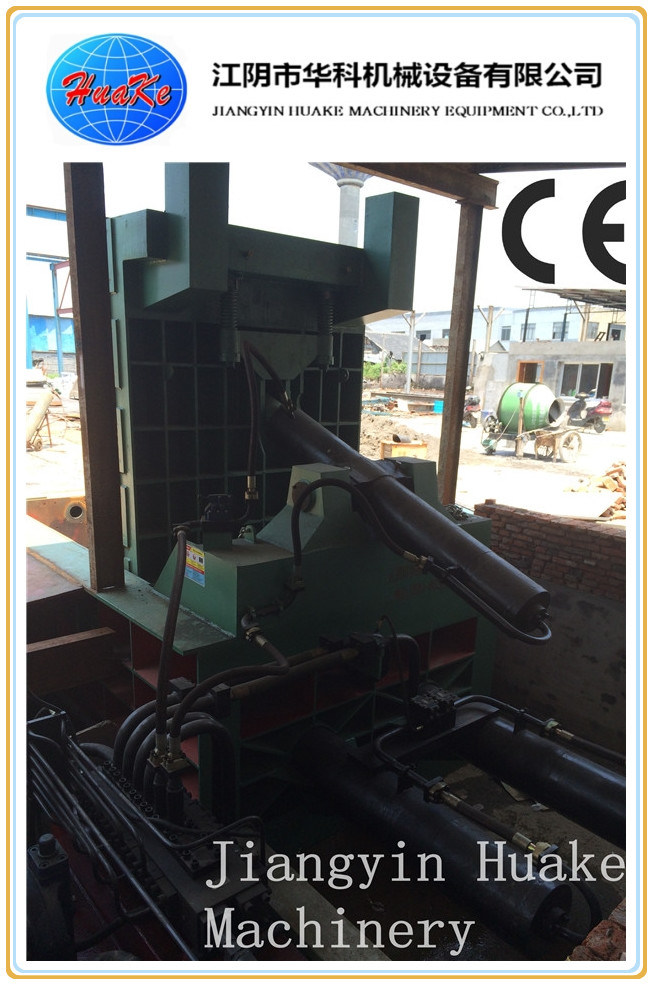

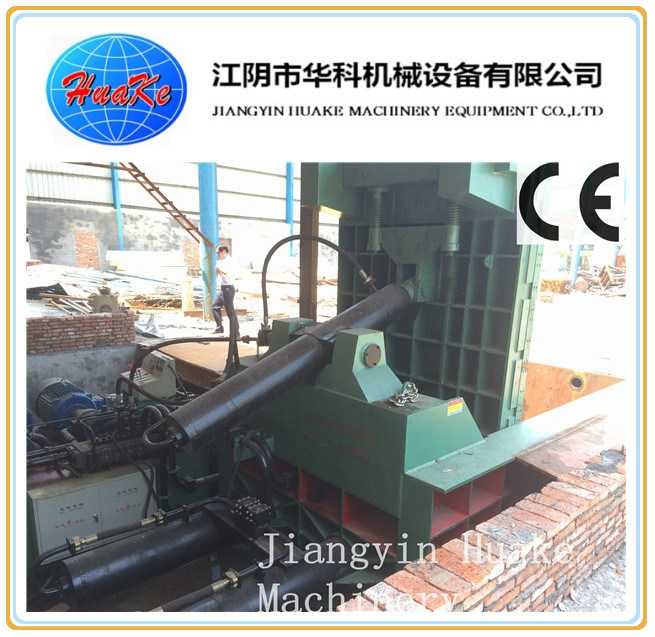

Y81-200 200 tons power hydraulic Scrap Metal Baler packer machine for recycling metal

Y81-200 Scrap metal Baler

Technical Specification
Model	Main Cyl. Force	Press Box Size	Bale Size	Bale Weight	Capacity	Motor
	(Ton)	(mm)	(mm)	(kg)	(bale/hr)	(kw)
Y81-200	200	1600X1000X800	400X400	110-130	6-12	38.65
Y81-200	200	1600X1200X800	400X400	130-160	6-12	38.65
Y81-200	200	1800X1400X800	400X400	160-200	6-12	45.65
Y81-200	200	1800X1400X800	Octagon/260	30-90	6-12	45.65
Y81-200	200	1800X1400X800	Octagon/300	40-100	6-12	45.65

Brief Introduction of Baling Process

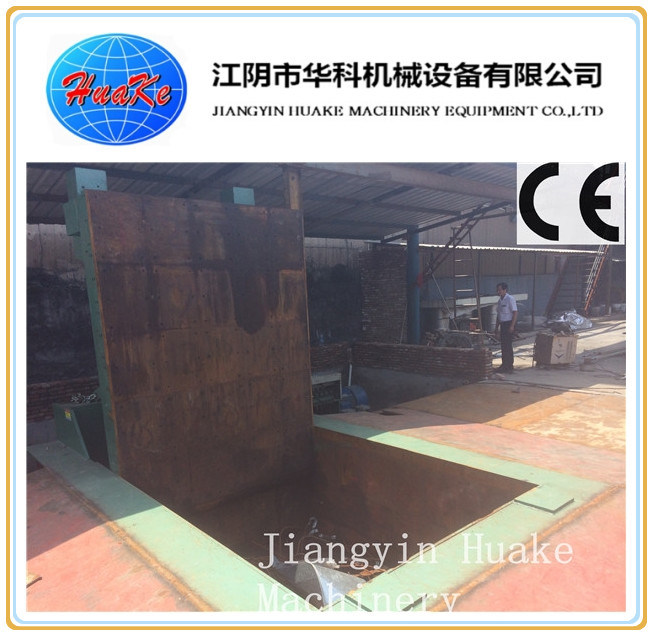

At first, the waste material for baling should be loaded into the compacting box manually or machinically. The Lid cylinder starts to revolve the Lid to the right position for sealing the compacting box completely. Then the ejectors of the side cylinder and the main cylinder squeeze the waste mateials into bale. Relying on the locking door cylinder, the locking door will be opened. The ejector of the main cylinder will push the bale out of the compacting box, finisheing the baling process.

Related Names
Metal Baler | Scrap Metal Baler | Side Push Out Baler | Scrap Baling Press Machine | Scrap Metal Compactor | Baler for Ferrous and Non Ferrous

Quick Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Huake
Service : the machine are always tested and assembled before shipping,customer only need to follow simple steps to start .Engineers available on phone 24 hours ,unsolvable problem come to fix.
Model Number: Y81-200
Color: User Defined

typical detailed paramteters

Item Number	Parameter content									Remarks注
1	Master Pressure Cylinder	Model		YG320/220						200tons power
		Nominal Thrust		2000 KN			Quantity		1
2	Side Pressure cylinder	Model		YG220/160						200tons power (120 tons*2)
		Nominal Thrust		1000 KN*2			Quantity		2
3	COVER DOOR Cylinder	Model		YG200/140						80tons power
		Nominal Thrust		800 KN			Quantity		1
4	Bale PUSH OUT Cylinder	Model		YG1250/80						50tons power
		Nominal Thrust		500 KN			Quantity		1
5	Material Box Dimension					1800×1300×800 mm				L×W×H
6	Bale size					(400-800 MM)400MM×400mm				L×W×H
	Single cycle time					About 120 seconds
7	Electromotor		Model		Y200L2-6			Rated power	22KW
			Rated speed		980 RPM			Quantity	2
8	Hydraulic pump		Model		160YCY14-1B			Rated Pressure	31.5MPa
			Nominal Displacement		160 ml/r			Quantity	2
9	Water cooler		Model number		GLC -8			Cooling effect	8 sauqre meters
10	Production rate		2.5-4.5 tons per hour
11	Machine weight		About 18 tons

Watch The Video
Youtube:www.youtube.com/watch?v=QHD1xZvVTQY



Features:
A) Hydraulic drive, manual valve operation or PLC control...
B) Bale-discharging: "turn-out", "push-out", "forward-out" & manual discharging.
C) Options for different force, press box size, bale shape & size
D) Electrical motor, diesel engine or generator for power.

Applications:

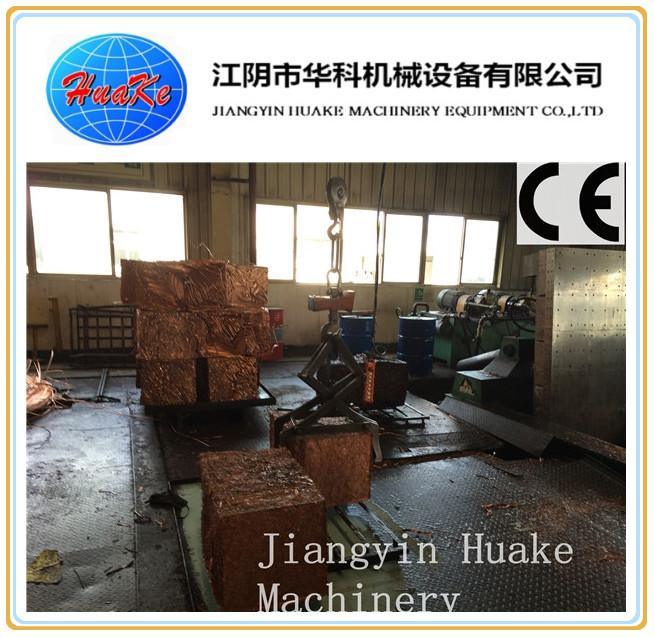

Y81 series of hydraulic scrap balers are applied in steel mills, recycling plants, ferrous & non
-ferrous smelting industry to press scrap metal (steel, copper, aluminum, stainless steel, discarded automobiles, etc)
Into acceptable furnace charges in shape of cuboids, cylinders & octagons.
