Q91-800 800 TONS POWER SCRAP METAL Cutting machine Heavy-Duty Scrap Metal Shears
- Product Details:
Place of Origin: china
Brand Name: HUAKE
Certification: CE
Model Number: Q91-800
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 100000-150000 USD
Packaging Details: EXPORT WORTHY PACKAGE
Delivery Time: 60 DAYS
- Order phone：+86-13003381217
- Inquiry
Detail
| Automatic Grade: | Automatic Plc Control , Touch Screen Set Length .easy Contrrol | Driven Type: | Hydraulic Driven |
| After-Sales Service Provided: | Engineers Available To Service24 Hours On Line , And Enigeer Can Come To Site | Application: | Scrap Metal Recycling Yard, Steel Plant, Aluminium Plant, Copper Plant |
| Name: | Scrap Metal Cutting Machine, Scrap Metal Gantry Shear , Heavy Scrap Metal Shear | Warranty: | 12 Months |
| Usage: | FOR CUTTING VARUOIS SHAPE HEAY STEELS TO SMALLER SIZES SO THAT IT CAN BE TRANSPORTED AND PUT INTO FURANANCE EASILY | Function: | Easy For Transport And Reduce Smelt Cost |
| Advantage: | Very High Production Rate, Very Easy Opearation , Is A Very Ideal Solution For Heavy Metal Materials | Delivery Date: | 50 -70 Days |
| Paint: | Cutmoized Color, With Anti Dust Paint | Production Efficieny: | 100 Tons-120 Tons Per Day |
Product Description
Q91-800 800 TONS POWER SCRP METAL Cutting machine Heavy-Duty Scrap Metal Shears
PARAMTERS IN DETAILS
1) Application
This equipment is mainly used for cutting all kinds of low-carbon light-weight production and domestic scrap steel, Scrap automobile shells, Light metal structures made of steel.Materials are cut into ideal sizes for Furnace feeding in steel mill. Non-ferrous metal smelting industry .it is an Ideal equipment for the precision casting industry and raw material manufacturers.
(2) Characteristics
a. This machine adopts the upper compression scrap shaping and segment feeding mode. In addition, it is designed for wide and large Material cabinet. It has good adaptability to various kinds of scrap steel materials. The scrap steel after shearing has high compactness.
b. Machine, electricity, hydraulic system, integrated control, easy to learn, intuitive operation, convenient
c. Adopt PLC control. High reliability and easy maintenance
d. Each moving part is driven by hydraulic pressure. It works smoothly. The shearing force is strong. The efficiency is high
Q91Y-800W HEAVY DUTY GANTRY SHEAR PARAMETERS
| ITEM NO. | PARAMETERS | remarks | |||||||||
| 1 | SHEARING CYLINDER | MODEL NO. | YG450/300-950 |
400*2 =800 TONS POWER |
|||||||
| MAXIMUM THRUST | 4500KNX2 | QUANTITY | 2sets | ||||||||
| 2 | CLAMPING CYLINDER | MODEL NO. | YG240/160-1000 |
125*2=250TONS POWER |
|||||||
| MAXIMUM THRUST | 1250KNX2 | QUANTITY | 2 sets | ||||||||
| 3 | ENHANCING SPEED UP CYLINDER | MODEL NO. | YG220/160 | 100 TONS POWER | |||||||
| MAXIMUM THRUST | 1000kN | QUANTITY | 1set | ||||||||
| 4 | MATERIAL PUSH CYLINDER | MODEL NO. | YG240/180 | 125 TONS POWER | |||||||
| MAXIMUM THRUST | 1250kN | QUANTITY | 1set | ||||||||
| 5 | MATERIAL BOX SIZE (L W H) | 8000×1800×900 mm | |||||||||
| 6 | HYDRAULIC SYSTEM PRESSURE | 25MPa | |||||||||
| 7 |
SHEARING BALDE LENGTH MINIMUM OPEN HEIGHT |
1800mm/580mm | |||||||||
| 8 | MAXIMUM CLAMPIG HEIGHT | 630mm / 1000mm | |||||||||
| 9 | Total Power | 176KW | |||||||||
| 10 | Power Spec | 380V/3PH,50Hz OR CUSOMIZE | |||||||||
| 11 | Shearing angle | 11 degrees | |||||||||
| 12 | MATERIAL PUSHING METHOD | ||||||||||
|
Back cylinder push
|
Length adjustable by your self There is a length control system on machine Speed 230mm/second
|
||||||||||
| CYLINDER DETAIL | YG240/180 CYLINDER FORCE 1250 KN=125TONS POWER | ||||||||||
| 13 | Shearing width | 1800㎜ | |||||||||
| 14 |
maximum shearing capacityΔb≤450Mpa
|
Round steel:φ150mm |
In the middle of the blade |
||||||||
| Square steel:130×130mm | |||||||||||
| Steel plate:70×600mm | |||||||||||
| 15 | Shearing frequency(empty load) | 3-4 times/minute | |||||||||
| 16 | Electromotor | Model | YX3-250M-4 | Rated power | 55KW | ||||||
| Rated speed | 1480 rpm | Quantity | 3setst | ||||||||
| 17 | Hydraulic pump | Model | HY250 | Rated Pressure | 31.5MPa | ||||||
|
Nominal Displacement |
250ml/r | Quantity | 3 sets | ||||||||
|
18
|
Cooling circulating pump | Model | 2CY-24/6.3-1 | Rated speed | 11Kw | ||||||
|
Nominal Displacement |
400L/min | Quantity | 1450 rpm | ||||||||
| Nominal pressure | 6.3MPa | Power | 1set | ||||||||
| WATER COOLER | MODEL | GLC-21 | COOLING AREA | 21 SQAURE METERS | |||||||
| 19 | MACHINE WEIGHT | Around 80 tons | |||||||||
| 20 | Production effciiency | Conservatively estimate 10 tons per hour | |||||||||
Features
1) PLC, equipped with remote control.
2) Hydraulic motor pushing.
3) Customized feed box size& Blade length.
4) Complete technical services.
After-sell service
1) One year guarantee and lifelong maintenance.
2) Spare parts: supply one set of spare parts for free, tool box, operation book.
3) Any problem, you can get our vedio guide easily
4) 24 hour response
5) guiding vedio and technical support

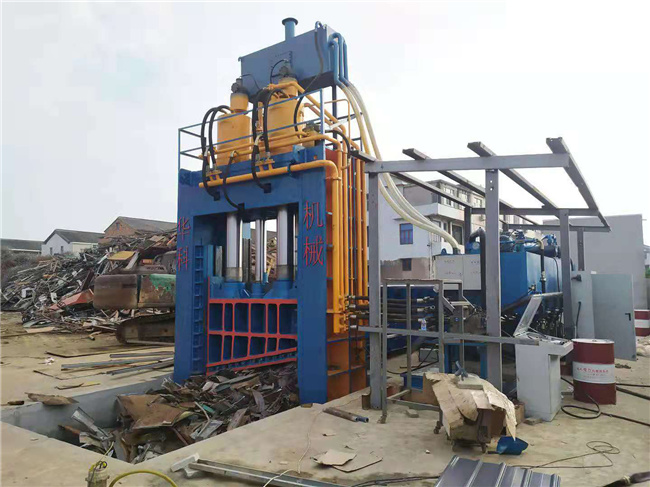

Product Pictures
suitable for materials like
Technical Specification
| Model | Q91Y-800 |
| Max Cutting Force( ton) | 800 |
| Press Box Size( mm) | 8000*1900*1200 or customize |
| Blade Length( mm) | 2000 |
| Cutting Frequency( times/min) | 3-4 times per minute |
| Cutting Specifications( mm) | 600mm |
MACHINE VEDIO ON YOUTUBE :
https://youtu.be/MQG-SFiCpJk

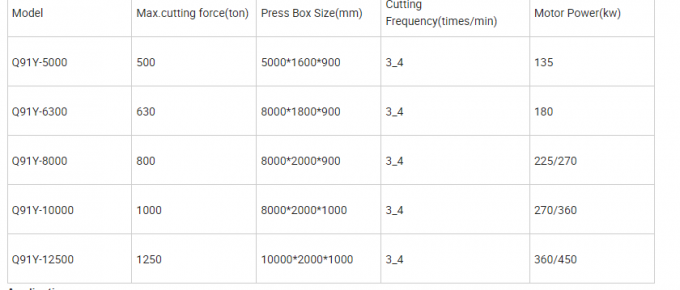

other modes for choice :
