Technical Specification
Model	Main Cyl. Force	Press Box Size	Bale Size	Bale Weight	Capacity	Motor
	(Ton)	(mm)	(mm)	(kg)	(bale/hr)	(kw)
Y81-200	200	1600X1000X800	400X400	110-130	6-12	38.65
Y81-200	200	1600X1200X800	400X400	130-160	6-12	38.65
Y81-200	200	1800X1400X800	400X400	160-200	6-12	45.65
Y81-200	200	1800X1400X800	Octagon/260	30-90	6-12	45.65
Y81-200	200	1800X1400X800	Octagon/300	40-100	6-12	45.65



quiick details :

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Huake
Function: Metal recovering and recycling.
Service: The machine are always tested and assembled before shipping, customer only need to follow simple steps to start. Engineers available on phone 24 hours, unsolvable problem come to fix.
Model Number: Y81F-200
Color: User Defined
Packaging Details: Nude packing, loading container directly.
Delivery Detail: 25-30 days

advantage

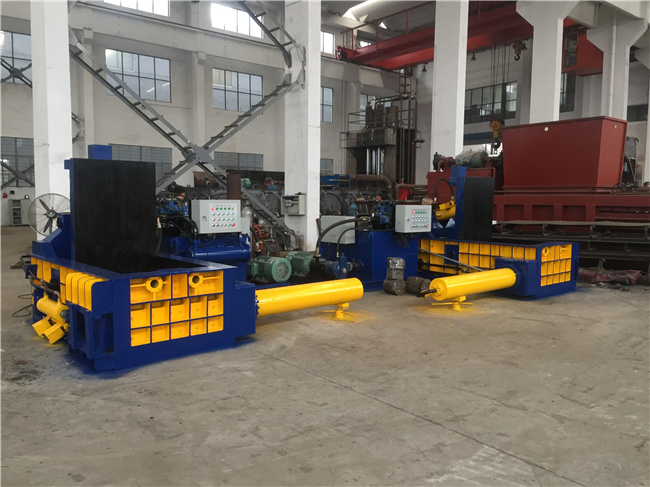

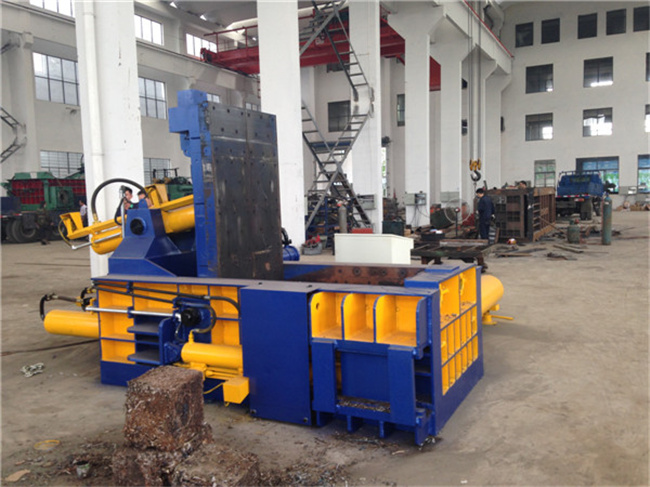

HUAKE 200 tons scrap metal baler is used to compress the scrap metal into bales with certain size. The machine adopts hydraulic transmission to complete the baling process



It can be manually operated or automatically controlled. The baler adopts differential acceleration system, which



increases the baling efficiency Significantly. It is an excellent scrap metal equipment for recycling metals



Special Features Of Huake light steel scrap metal balers



1: Reliable structural rigidity with enough weight



2. Cutting blade around lid and chamber box as to process long material



3 Adopt the Japan imported seals to ensure without phenomenon of oil leak and improve the service of the cylinder



4 Adopt the vessel classification of welding process to ensure that machine is more stable



5 Adopt Taiwan brand cooling system to extend use of hydraulic components



6: Adopt Rexroth joint venture brand valve group



Adopt connect motor with pump directly to ensure 100% concentricity and extend use of pump



8 Chamber size and bale size can be customized as clients demands



9: Using unique design which main cylinder stroke extended 100-200 mm



10: All electric wire of HUAKE automatic scrap metal balers were put into steel pipe, which avoid being cutting by scrap



11 For maintenance convenience machine use flange connection between steel pipe and hydraulic hose



Features:
A) Hydraulic drive, manual valve operation or PLC control...
B) Bale-discharging: "turn-out", "push-out", "forward-out" & manual discharging.
C) Options for different force, press box size, bale shape & size
D) Electrical motor, diesel engine or generator for power.

Applications:
Y81 series of hydraulic scrap balers are applied in steel mills, recycling plants, ferrous & non
-ferrous smelting industry to press scrap metal (steel, copper, aluminum, stainless steel, discarded automobiles, etc)
Into acceptable furnace charges in shape of cuboids, cylinders & octagons.





How to choose your baler correctly?
We will ask you to offer some details
Like what material you need to bale. Pictures best,
How many tons per hour output is needed.
And bale size restrictions
Bale ejection ways preference.
Other machines on sites .etc
Then we will give a most suitable solution for you.
we will also offer similar user sites vedio for your reference, maybe in your same country we have users also.
