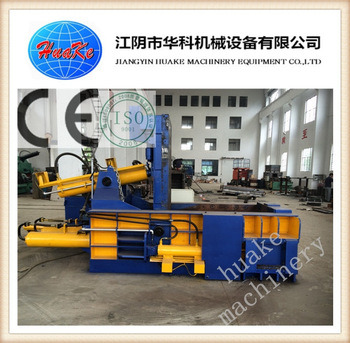

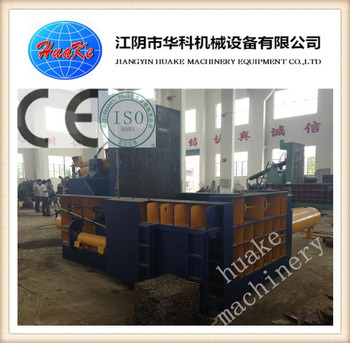

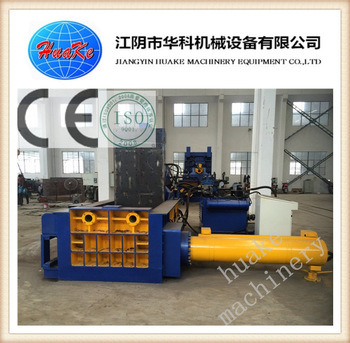

Automatic Hydraulic Iron Scrap Pressing Machine Y81-125

  • Product Details:
    Place of Origin: china
    Brand Name: HUAKE
    Certification: CE SGS
    Model Number: Y81-125
    Payment & Shipping Terms:
    Minimum Order Quantity: 1 SET
    Packaging Details: EXPORT WORTHY PACKAGE
    Delivery Time: 35-40 DAYS
    Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
    Supply Ability: 100 PCS/Year.
Order phone：+86-13003381217
Inquiry

Detail

Model NO.: Y81-125 Motor: 15/22
Trademark: HUAKE Specification: CE SGS
Origin: China HS Code: 84629190
Port: Shanghai, China Control Type: PLC
Customized: Customized Condition: New
Automatic Grade: Automatic Certification: CE
Bale Weight (Kg): 15-90
High Light: 125t iron scrap baling press , iron scrap pressing machine Y81-125 , CE iron scrap pressing machine
Product Description

china automatic Hydraulic Metal Baler for Scrap Iron

we are close to 20 years experienced manufacturer of scrap metal baler , scrap metal shear ,scrap metal cursher machine.

can offer good quality machine and excellent asfter sale service.


Y81 SERIES METAL HYDRAULIC BALER
Turn-out Series
Model Nominal Force (kn) Press Box Size (L*W*H)(mm) Bale Size (W*H) (mm) Bale Weight (kg) Production (T/h) Power (kw)
Y81F-63 630 1000*600*500 200*200 20~25 0.9~1.1 7.5
Y81F-100 1000 1000*700*550 250*250 45~55 1.1~1.3 11
Y81F-125A 1250 1200*700*600 300*300 60~80 1.2~1.5 15
Y81F-125A1 1250 1200*800*600 300*300 60~80 1.2~1.6 15
Y81F-125A2 1250 1200*900*600 300*300 60~80 1.2~1.6 15
Y81F-125B 1250 1200*700*600 250*250 45~60 1.2~1.5 15
Y81F-125B1 1250 1200*800*600 250*250 45~60 1.2~1.6 15
Y81F-125B2 1250 1200*900*600 250*250 45~60 1.2~1.6 15
Y81F-125AD 1250 1400*800*700 300*300 65~80 1.5~2.0 18.5
Y81F-160 1600 1400*900*700 320*320 80~110 2.2~3.0 22
Y81F-160A 1600 1600*1000*800 400*400 110~150 2.2~3.0 22
Y81F-160B 1600 1600*1200*800 400*400 130~180 2.6~3.9 15*2
Y81F-200 2000 1600*1000*800 400*400 110~150 2.2~3.0 37
Y81F-200A 2000 1600*1200*800 400*400 130~180 2.8~3.9 37
Y81F-200B 2000 1800*1400*800 450*450 130~180 2.8~3.9 37
Y81F-250A 2500 2000*1400*900 500*500 190~280 3.5~5.0 22*2
Y81F-250B 2500 2000*1750*1000 500*500 200~380 4.0~6.5 22*2
Y81F-250BKC 2500 2000*1750*1000 450*450 160~250 3.2~4.5 22*2
Y81F-315 3150 2500*2000*1200 600*600 250~650 4.5~7.0 45*2
Y81F-400 4000 3500*2000*1200 500*600 45*2
Y81F-500 5000 3000*2500*1200 600*700 55*2
Side Push-out Series
Model Nominal Force (kn) Press Box Size (L*W*H)(mm) Bale Size(W*H)(mm) Bale Weight(kg) Production(T/h) Power (kw)
Y81T-63 630 1000*600*500 200*200 28~35 0.9~1.1 7.5
Y81T-100 1000 1000*700*550 230*230 42~53 1.2~1.5 11
Y81T-125A 1250 1200*700*600 300*300 65~80 1.2~1.8 15
Y81T-125B 1250 1200*700*600 250*250 50~62 1.2~1.5 15
Y81T-125AD 1250 1400*800*700 300*300 18.5
Y81T-160 1600 1400*900*700 320*320 70~85 1.5~2.2 22
Y81T-160A 1600 1600*1000*800 400*400 110~150 2.0~3.5 22
Y81T-160B 1600 1600*1200*800 400*400 130~180 2.0~4.0 15*2
Y81T-200A 2000 1600*1200*800 450*450 140~190 2.5~4.5 37
Y81T-200B 2000 1800*1400*900 450*450 210~300 3.0~5.0 22*2
Y81T-250A 2500 2000*1400*1000 500*500 230~270 4.0~6.3 22*2
Y81T-250B 2500 2000*1750*1000 500*500 250~280 5.0~6.3 22*2
Y81T-315A 3150 2000*1400*1000 500*500 250~360 4.0~6.5 37*2
Y81T-315B 3150 2000*1750*1000 500*500 260~370 5.0~7.0 37*2
Y81T-400 4000 3000*2000*1200 500*600 250~380 6.0~8.0 45*2
Y81T-500R 5000 2500*1300*800 500*500 300~500 6.0~10.0 22+37
Forward-out Series
Model Nominal Force (kn) Press Box Size (L*W*H)(mm) Bale Size (W*H)(mm) Bale Weight (kg) Production(T/h) Power (kw)
Y81Q-100 1000 1100*600*550 600*220 40~60 1.0~1.8 7.5
Y81Q-135A 1350 1400*600*600 600*240 50~75 1.5~2.8 22
Y81Q-135B 1350 1100*600*600 600*240 45~65 1.2~1.7 15
Y81Q-160 1600 1600*800*600 800*280 60~90 2.0~3.0 22
Y81Q-200 2000 1600*800*700 800*280 90~110 2.5~3.5 30
Y81Q-250 2500 1750*900*800 900*350 110~130 4.5~6.0 22*2


Applications:
Y81 series of hydraulic scrap balers are applied in steel mills, recycling plants, ferrous & non
-ferrous smelting industry to press scrap metal (steel, copper, aluminum, stainless steel, discarded automobiles, etc)
into acceptable furnace charges in shape of cuboids, cylinders & octagons



Model Main Cyl.Force(ton) Press Box Size(mm) Bale Size(mm) Bale Weight(kg) Motor(kW)
Y81F-125A 125 1100x700x550 200x200 Octagon
140 Octagon 200 		15-35 15
Y81F-125B 125 1100x700x600 230x230 25-40 15
Y81F-125C 125 1150x700x600 250x250 Octagon
230 Octagon 260 		30-50 15
Y81F-125D 125 1200x700x600 300x300 50-70 15
Y81F-125E 125 1200x800x600 300x300 50-70 15
Y81F-125F 125 1200x900x600 300x300
Octagon 260 		50-70 15/22
Y81F-125G 125 1400x700x700 300x300 60-90 22
Y81F-125H 125 1400x800x700 300x300
Octagon 300 		60-90 22
Y81F-125J 125 1400x900x600 Octagon 260
Octagon 300 		60-90 22


Warranty and after-sale service
1), we offer lifelong technical support and maintenance for free
2), 12 months quality guarantee with free spare parts free exchange after installation
3), 24 hours online service through e-mail, phone call, skype etc.



Watch The Video

Youtube:https://www.youtube.com/watch?v=QHD1xZvVTQY


there are many other pressure machines on show ,.


Packaging & Delivery

Packaging Details: Nude packing, loading container directly.
Delivery Detail: 20-25 days


Features:
a) Hydraulic drive, manual valve operation or PLC control for choice..
b) Bale-discharging for choice: "turn-out", "push-out", "forward-out" & manual discharging.
c) Options for different force, press box size, bale shape & size
d) Electrical motor, diesel engine or generator for power.
