Y81F-2500 Scrap Metal Baler Machine For Waste Copper Aluminium
- Product Details:
Place of Origin: china
Brand Name: HUAKE
Certification: CE SGS
Model Number: Y81F-2500
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 20000-50000 USD
Packaging Details: EXPORT WORTHY PACKAGE
Delivery Time: 35-40 DAYS
Payment Terms: L/C, T/T
Supply Ability: 200PCS Per Year
- Order phone：+86-13003381217
- Inquiry
Detail
| Model NO.: | Y81F-2500 | HS Code: | 84629190 |
| Other Name: | Scrap Metal Compactor/hydraulic Metal Baler/steel Baler Machines | Advantage: | Fast In Speed, Can Add Hopper,can Customize Press Box Size,and Bale Size |
| Certification: | CE SGS | Trademark: | HUAKE |
| Origin: | Jiangsu China | Driven Type: | Hydraulic |
| Automatic Grade: | Automatic | ||
| High Light: | Y81F-2500 ODM Scrap Metal Baler Machine , ODM Scrap Metal Baler Machine , HUAKE used aluminum can baler | ||
Y81F-2500 Scrap Metal Baler Packing Machine For Waste Copper,Aluminium Cans,Aluminum,Metal Shavings
Application
Metal baler machine is mainly used in recycling industry and metal smelting industry.It can be used to squeeze all kinds of metal scraps, steel shavings, scrap steel, scrap iron, scrap copper, etc.
scrap metal baling press machine has many advantages, bale comes out by turn-out, and suitable for teel, copper, aluminum, stainless steel, discarded automobiles) into acceptable furnace charges (shapes: cuboid, cylinder or octagon), so as to reduce cost of transportation, to increase speed of furnace charging.
You have optional operation for you to choose. This series baler have two operation control, one is manual valve operation, and another is PLC control, and it’s optional on customers’ requirements, Chamber size, bale size & bale shape can be customized. Cutting function to improve the efficiency.
The feeding chamber has cutting function to prevent additive materials caused by carelessness and safety accident, Adopt double pressure protection device. No footing bolts needed in installation, diesel engine can be equipped for power. Adopt the German hydraulic technology to save energy and protect environment, and the brand valve group, Schneider appliances, seals are imported form British to ensure without phenomenon of oil leak and improve the service life of the cylinder.
METAL BALER CHARACTERISTIC
1. The hydraulic driving is adopted for the machine
2. The manual or PLC automatic control operations.
3. Installation does not need the foundation screw
4. Can choose diesel engine drive or motor driv
5. Three out- bag ways: Turn, Side push, front push.
6. The chamber box size and bale size can according to the customer request.
7, Voltage/frequency can according to customer requirement.
8, Can add two sides of knives and teeth on the chamber box
9. Can be equipped with cooler or heater
specification
|
Side Push-out Series |
||||||
|
Model |
Nominal Force (kn) |
Press Box Size (L*W*H)(mm) |
Bale Size(W*H)(mm) |
Bale Weight(kg) |
Production(T/h) |
Power (kw) |
|
Y81T-63 |
630 |
1000*600*500 |
200*200 |
28~35 |
0.9~1.1 |
7.5 |
|
Y81T-100 |
1000 |
1000*700*550 |
230*230 |
42~53 |
1.2~1.5 |
11 |
|
Y81T-125A |
1250 |
1200*700*600 |
300*300 |
65~80 |
1.2~1.8 |
15 |
|
Y81T-125B |
1250 |
1200*700*600 |
250*250 |
50~62 |
1.2~1.5 |
15 |
|
Y81T-125AD |
1250 |
1400*800*700 |
300*300 |
|
|
18.5 |
|
Y81T-160 |
1600 |
1400*900*700 |
320*320 |
70~85 |
1.5~2.2 |
22 |
|
Y81T-160A |
1600 |
1600*1000*800 |
400*400 |
110~150 |
2.0~3.5 |
22 |
|
Y81T-160B |
1600 |
1600*1200*800 |
400*400 |
130~180 |
2.0~4.0 |
15*2 |
|
Y81T-200A |
2000 |
1600*1200*800 |
450*450 |
140~190 |
2.5~4.5 |
37 |
|
Y81T-200B |
2000 |
1800*1400*900 |
450*450 |
210~300 |
3.0~5.0 |
22*2 |
|
Y81T-250A |
2500 |
2000*1400*1000 |
500*500 |
230~270 |
4.0~6.3 |
22*2 |
|
Y81T-250B |
2500 |
2000*1750*1000 |
500*500 |
250~280 |
5.0~6.3 |
22*2 |
|
Y81T-315A |
3150 |
2000*1400*1000 |
500*500 |
250~360 |
4.0~6.5 |
37*2 |
|
Y81T-315B |
3150 |
2000*1750*1000 |
500*500 |
260~370 |
5.0~7.0 |
37*2 |
|
Y81T-400 |
4000 |
3000*2000*1200 |
500*600 |
250~380 |
6.0~8.0 |
45*2 |
|
Y81T-500R |
5000 |
2500*1300*800 |
500*500 |
300~500 |
6.0~10.0 |
22+37 |
Watch The Video
Youtube:www.youtube.com/watch?v=QHD1xZvVTQY
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Huake
Service : the machine are always tested and assembled before shipping,customer only need to follow simple steps to start .Engineers available on phone 24 hours ,unsolvable problem come to fix.
Model Number: Y81F-315
Color: User Defined
Packaging & Delivery
Pckaging Details: Nude packing, loading container directly.
Delivery Detail: 30-45 days
Features:
A) Hydraulic drive, manual valve operation or PLC control...
B) Bale-discharging: "turn-out", "push-out", "forward-out" & manual discharging.
C) Options for different force, press box size, bale shape & size
D) Electrical motor, diesel engine or generator for power.
Applications:
Y81 series of hydraulic scrap balers are applied in steel mills, recycling plants, ferrous & non
-ferrous smelting industry to press scrap metal (steel, copper, aluminum, stainless steel, discarded automobiles, etc)
Into acceptable furnace charges in shape of cuboids, cylinders & octagons.

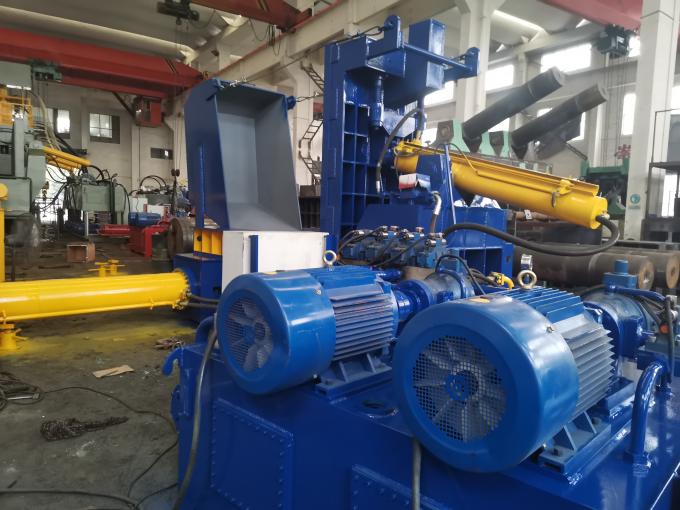

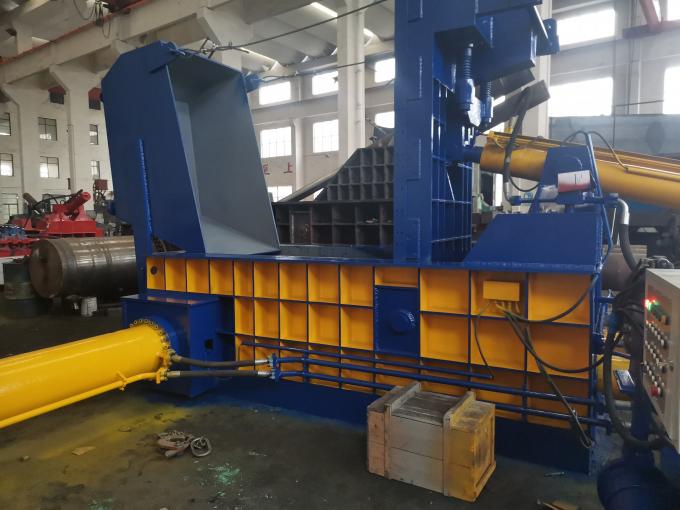

SPECIAL DESIGN WITH HOPPER TO Save loading time
|
Model |
Main Cyl.Force(ton) |
Press Box Size(mm) |
Bale Size(mm) |
Bale Weight(kg) |
Motor(kW) |
|
Y8FT-315A |
315 |
2000x1750x1000 |
500x600 |
300-500 |
2x45 |
|
Y81F-315B |
315 |
2500x2000x1200 |
600x600 |
400-700 |
2x45 |
|
Y81F-315E |
315 |
2500x2000x1200 |
600x600 |
400-700 |
2x45 |
How to choose your baler correctly?
We will ask you to offer some details
Like what material you need to bale. Pictures best,
How many tons per hour output is needed.
And bale size restrictions
Bale ejection ways preference.
Other machines on sites .etc
Then we will give a most suitable solution for you.
we will also offer similar user sites vedio for your reference, maybe in your same country we have users also.
