Hydraulic Cast Iron Scrap Pressing Machine Scrap Metal Processing Equipment
- Product Details:
Place of Origin: china
Brand Name: HUAKE
Certification: CE SGS
Model Number: Y81-250
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 20000-50000 USD
Packaging Details: EXPORT WORTHY PACKAGE
Delivery Time: 35-40 DAYS
Payment Terms: L/C, T/T
Supply Ability: 200PCS Per Year
- Order phone：+86-13003381217
- Inquiry
Detail
| Model NO.: | Y81-250 | HS Code: | 84629190 |
| Port: | Shanghai, China | Manufacturer: | Quality Baler Manufacturer |
| Specification: | CE, SGS, | Trademark: | Huake |
| Origin: | China | Yearly Export: | 50 Sets |
| Function: | Easy For Transport And Reduce Smelt Cost,scrap Metal Baling,high Effieciency | ||
| High Light: | Cast Iron Scrap Pressing Machine , Y81-250 Iron Scrap Pressing Machine , 250t scrap metal processing equipment | ||

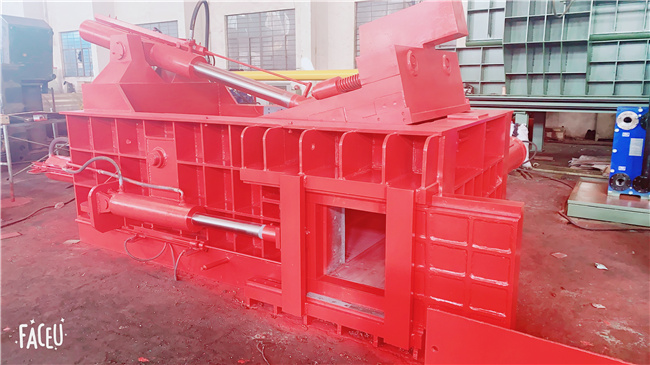

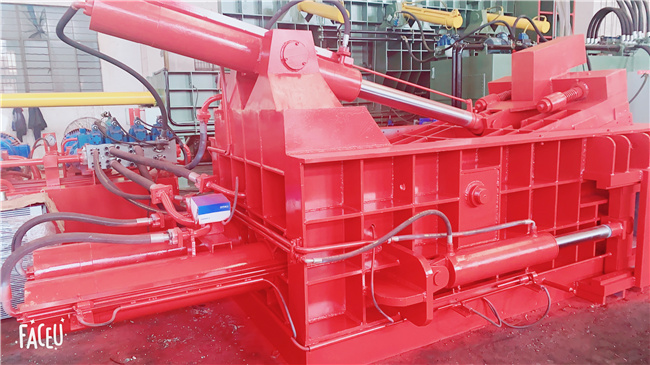

Y81 series Hydraulic Used Cast Iron Machine Baler / baler for recycling / scrap metal processing equipment
1. Applications
Y81T-250hydraulic metal scrap baling machine with CE is mainly suitable for steel recovering and processing industries, colored and black metal smelt industries.
It can extrude every kinds of metal leftover materials, steel paring, waste copper and waste aluminum into qualified charging such as square column, cylinder, octagon body and other sharps. The purpose is reduce the costs of transportation and smelting.
2. Features
1) Four or five compressor cylinders.
2) Bale discharging: side push-out, The package is compact and rigid.
3) Hydraulic driven with hand-value or PLC.
4) Options for different force, press box size, bale shape&size.
5) Use diesel engine when electrical motor is unavailable.
6) With safety warning lables.
7) No installation needed.
8) With emergency button stop any time.
9) Long life of motor and pump.
10) widely used in many lines.
11) CE marked.
12) With oil tank on baler, easy installation.
3. Service
1) One year guarantee and lifelong maintenance.
2) Spare parts: supply one set of spare parts for free, tool box, operation book.
3) Any problem, you can call us directly.
sepcs for full range :
| Y81 SERIES METAL HYDRAULIC BALER | ||||||
| Turn-out Series | ||||||
| Model | Nominal Force (kn) | Press Box Size (L*W*H)(mm) | Bale Size (W*H) (mm) | Bale Weight (kg) | Production (T/h) | Power (kw) |
| Y81F-63 | 630 | 1000*600*500 | 200*200 | 20~25 | 0.9~1.1 | 7.5 |
| Y81F-100 | 1000 | 1000*700*550 | 250*250 | 45~55 | 1.1~1.3 | 11 |
| Y81F-125A | 1250 | 1200*700*600 | 300*300 | 60~80 | 1.2~1.5 | 15 |
| Y81F-125A1 | 1250 | 1200*800*600 | 300*300 | 60~80 | 1.2~1.6 | 15 |
| Y81F-125A2 | 1250 | 1200*900*600 | 300*300 | 60~80 | 1.2~1.6 | 15 |
| Y81F-125B | 1250 | 1200*700*600 | 250*250 | 45~60 | 1.2~1.5 | 15 |
| Y81F-125B1 | 1250 | 1200*800*600 | 250*250 | 45~60 | 1.2~1.6 | 15 |
| Y81F-125B2 | 1250 | 1200*900*600 | 250*250 | 45~60 | 1.2~1.6 | 15 |
| Y81F-125AD | 1250 | 1400*800*700 | 300*300 | 65~80 | 1.5~2.0 | 18.5 |
| Y81F-160 | 1600 | 1400*900*700 | 320*320 | 80~110 | 2.2~3.0 | 22 |
| Y81F-160A | 1600 | 1600*1000*800 | 400*400 | 110~150 | 2.2~3.0 | 22 |
| Y81F-160B | 1600 | 1600*1200*800 | 400*400 | 130~180 | 2.6~3.9 | 15*2 |
| Y81F-200 | 2000 | 1600*1000*800 | 400*400 | 110~150 | 2.2~3.0 | 37 |
| Y81F-200A | 2000 | 1600*1200*800 | 400*400 | 130~180 | 2.8~3.9 | 37 |
| Y81F-200B | 2000 | 1800*1400*800 | 450*450 | 130~180 | 2.8~3.9 | 37 |
| Y81F-250A | 2500 | 2000*1400*900 | 500*500 | 190~280 | 3.5~5.0 | 22*2 |
| Y81F-250B | 2500 | 2000*1750*1000 | 500*500 | 200~380 | 4.0~6.5 | 22*2 |
| Y81F-250BKC | 2500 | 2000*1750*1000 | 450*450 | 160~250 | 3.2~4.5 | 22*2 |
| Y81F-315 | 3150 | 2500*2000*1200 | 600*600 | 250~650 | 4.5~7.0 | 45*2 |
| Y81F-400 | 4000 | 3500*2000*1200 | 500*600 | 45*2 | ||
| Y81F-500 | 5000 | 3000*2500*1200 | 600*700 | 55*2 | ||
| Side Push-out Series | ||||||
| Model | Nominal Force (kn) | Press Box Size (L*W*H)(mm) | Bale Size(W*H)(mm) | Bale Weight(kg) | Production(T/h) | Power (kw) |
| Y81T-63 | 630 | 1000*600*500 | 200*200 | 28~35 | 0.9~1.1 | 7.5 |
| Y81T-100 | 1000 | 1000*700*550 | 230*230 | 42~53 | 1.2~1.5 | 11 |
| Y81T-125A | 1250 | 1200*700*600 | 300*300 | 65~80 | 1.2~1.8 | 15 |
| Y81T-125B | 1250 | 1200*700*600 | 250*250 | 50~62 | 1.2~1.5 | 15 |
| Y81T-125AD | 1250 | 1400*800*700 | 300*300 | 18.5 | ||
| Y81T-160 | 1600 | 1400*900*700 | 320*320 | 70~85 | 1.5~2.2 | 22 |
| Y81T-160A | 1600 | 1600*1000*800 | 400*400 | 110~150 | 2.0~3.5 | 22 |
| Y81T-160B | 1600 | 1600*1200*800 | 400*400 | 130~180 | 2.0~4.0 | 15*2 |
| Y81T-200A | 2000 | 1600*1200*800 | 450*450 | 140~190 | 2.5~4.5 | 37 |
| Y81T-200B | 2000 | 1800*1400*900 | 450*450 | 210~300 | 3.0~5.0 | 22*2 |
| Y81T-250A | 2500 | 2000*1400*1000 | 500*500 | 230~270 | 4.0~6.3 | 22*2 |
| Y81T-250B | 2500 | 2000*1750*1000 | 500*500 | 250~280 | 5.0~6.3 | 22*2 |
| Y81T-315A | 3150 | 2000*1400*1000 | 500*500 | 250~360 | 4.0~6.5 | 37*2 |
| Y81T-315B | 3150 | 2000*1750*1000 | 500*500 | 260~370 | 5.0~7.0 | 37*2 |
| Y81T-400 | 4000 | 3000*2000*1200 | 500*600 | 250~380 | 6.0~8.0 | 45*2 |
| Y81T-500R | 5000 | 2500*1300*800 | 500*500 | 300~500 | 6.0~10.0 | 22+37 |
| Forward-out Series | ||||||
| Model | Nominal Force (kn) | Press Box Size (L*W*H)(mm) | Bale Size (W*H)(mm) | Bale Weight (kg) | Production(T/h) | Power (kw) |
| Y81Q-100 | 1000 | 1100*600*550 | 600*220 | 40~60 | 1.0~1.8 | 7.5 |
| Y81Q-135A | 1350 | 1400*600*600 | 600*240 | 50~75 | 1.5~2.8 | 22 |
| Y81Q-135B | 1350 | 1100*600*600 | 600*240 | 45~65 | 1.2~1.7 | 15 |
| Y81Q-160 | 1600 | 1600*800*600 | 800*280 | 60~90 | 2.0~3.0 | 22 |
| Y81Q-200 | 2000 | 1600*800*700 | 800*280 | 90~110 | 2.5~3.5 | 30 |
| Y81Q-250 | 2500 | 1750*900*800 | 900*350 | 110~130 | 4.5~6.0 | 22*2 |
Wwacyatch The Video
watch the vedio:
Youtube: https://www.youtube.com/watch?v=QHD1xZvVTQY
Quick details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Huake
Function: Metal recovering and recycling.
Service: The machine are always tested and assembled before shipping, customer only need to follow simple steps to start. Engineers available on phone 24 hours, unsolvable problem come to fix.
Model Number: Y81T-250
Color: User Defined
Packaging & Delivery
Packaging Details: Nude packing, loading container directly.
Delivery Detail: 25-30 days
Features:
A) Hydraulic drive, manual valve operation or PLC control...
B) Bale-discharging: "turn-out", "push-out", "forward-out" & manual discharging.
C) Options for different force, press box size, bale shape & size
D) Electrical motor, diesel engine or generator for power.
Applications:
Y81 series of hydraulic scrap balers are applied in steel mills, recycling plants, ferrous & non
-ferrous smelting industry to press scrap metal (steel, copper, aluminum, stainless steel, discarded automobiles, etc)
Into acceptable furnace charges in shape of cuboids, cylinders & octagons.
Contact Us Now
Contact Person:Christine
Cell: +0086 13003381217
METAL BALER CHARACTERISTIC
1. The hydraulic driving is adopted for the machine

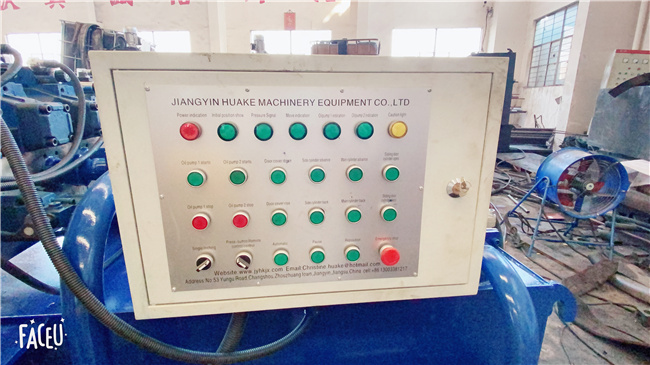

2. The manual or PLC automatic control operations.
3. Installation does not need the foundation screw
4. Can choose diesel engine drive or motor driv
5. Three out- bag ways: Turn, Side push, front push.
6. The chamber box size and bale size can according to the customer request.
7, Voltage/frequency can according to customer requirement.
8, Can add two sides of knives and teeth on the chamber box
9. Can be equipped with cooler or heater
