Y81-200 Hydraulic Scrap Metal Baler

  • Product Details:
    Place of Origin: china
    Brand Name: HUAKE
    Certification: CE SGS
    Model Number: Y81-200
    Payment & Shipping Terms:
    Minimum Order Quantity: 1 SET
    Price: 8000-20000 USD
    Packaging Details: EXPORT WORTHY PACKAGE
    Delivery Time: 35-40 DAYS
    Payment Terms: L/C, T/T
    Supply Ability: 200PCS Per Year
Order phone：+86-13003381217
Inquiry

Detail

Model NO.: Y81-200 HS Code: 84629190
Other Name: Hydraulic Baling Press Machine/scrap Metal Processing Equipment/ Transport Package: Baler For Recycling Scrap Metal
Specification: CE SGS Trademark: HUAKE
Origin: Jiangsu China Voltage: Customized
Warranty: 12 Months Function: Easy For Transport And Reduce Smelt Cost,scrap Metal Baling,high Effieciency,Automatic Plastic Packaging Line
Automatic Grade: Automatic Driven Type: Hydraulic,Electric,diesel
After-Sales Service Provided: Engineers Available To Service Machinery Overseas Name: Automatic Packing Machine,Baling Machine,Scrap Metal Shear Baler Machine,Advanced Technology Best Price Vertical Baling Press Machine
Packaging Material: Metal
High Light: Y81-200 SGS hydraulic scrap metal baler , SGS hydraulic scrap metal baler , 200t SGS hydraulic scrap metal baler HUAKE
Product Description

Hydraulic Automatic Balers for Copper /scrap baler machine/ metal scrap baling machine/ metal scrap baler


introduction

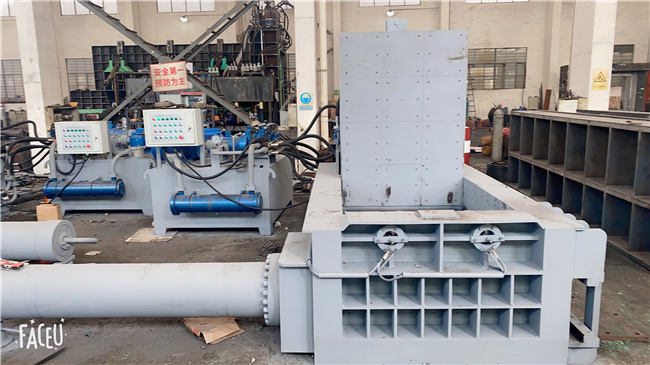

HUAKE 315 tons scrap metal baler is used to compress the scrap metal into bales with certain size. The machine adopts hydraulic transmission to complete the baling process


It can be manually operated or automatically controlled. The baler adopts differential acceleration system, which


increases the baling efficiency Significantly. It is an excellent scrap metal equipment for recycling metals


Special Features Of Huake light steel scrap metal balers


1: Reliable structural rigidity with enough weight


2. Cutting blade around lid and chamber box as to process long material


3 Adopt the Japan imported seals to ensure without phenomenon of oil leak and improve the service of the cylinder


4 Adopt the vessel classification of welding process to ensure that machine is more stable


5 Adopt Taiwan brand cooling system to extend use of hydraulic components


6: Adopt Rexroth joint venture brand valve group


Adopt connect motor with pump directly to ensure 100% concentricity and extend use of pump


8 Chamber size and bale size can be customized as clients demands


9: Using unique design which main cylinder stroke extended 100-200 mm


10: All electric wire of HUAKE automatic scrap metal balers were put into steel pipe, which avoid being cutting by scrap


11 For maintenance convenience machine use flange connection between steel pipe and hydraulic hose

Features

  • Electrical motor, diesel engine or generator for power
  • Bale-discharging: turn out ,side push out ,forward out
  • Options for different force,press box size,bale shape and size
  • Hydraulic drive,manual valve operation,or automatic running by remote control induction

Structure

  • Strong Body for Heavy Duty
  • Original Hardox anti-wear plates
  • The best quality brands are used in hydraulic and electronic parts
  • Hydraulic unit design producing high force with low consumption
  • High quality heavy duty cylinders (Hardened and chrom-coated piston rots , speacial honed pipes)

List of the materials to process

  • Fe, Al, Cu, Cr-Ni Scraps
  • Ferrous and non-ferrous
  • Aluminium Extrusions

List of the factories may need

  • Scrap Yards
  • Casting Plants

specifications to choose from

Model Main Cyl.Force Press Box Size Bale Size Bale Weight Motor
(ton) (mm) (mm) (kg)

(kW)

Y8FT-315A 315 2000x1750x1000 500x600 300-500 2x45
Y81F-315B 315 2500x2000x1200 600x600 400-700 2x45
Y81F-315E 315 2500x2000x1200 600x600 400-700 2x45

Watch The Video
Youtube: www.youtube.com/watch?v=QHD1xZvVTQY

Quick Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Huake
Function: Metal recovering and recycling.
Service: The machine are always tested and assembled before shipping, customer only need to follow simple steps to start. Engineers available on phone 24 hours, unsolvable problem come to fix.
Model Number: Y81F-315
Color: User Defined
Packaging & Delivery
Packaging Details: Nude packing, loading container directly.
Delivery Detail: 30-45 days
Features:
A) Hydraulic drive, manual valve operation or PLC control...
B) Bale-discharging: "turn-out", "push-out", "forward-out" & manual discharging.
C) Options for different force, press box size, bale shape & size
D) Electrical motor, diesel engine or generator for power.

Applications:
Y81 series of hydraulic scrap balers are applied in steel mills, recycling plants, ferrous & non
-ferrous smelting industry to press scrap metal (steel, copper, aluminum, stainless steel, discarded automobiles, etc)
Into acceptable furnace charges in shape of cuboids, cylinders & octagons.


advantage :

We have combined our own technical advantages and used years of experience to develop various Y81-400 Hydraulic Drive Scrap Metal Steel Copper Aluminum Baler Press Baling Machinery (Quality Guarantee). With the most advanced production technology and high-quality supporting services, our products are appreciated by our customers. We carry the concept of manufacturing products in a harmonious symbiosis between people and the environment. We, with open arms, invite all interested potential buyers to visit our web-site or get in touch with us immediately for further information and facts.

customer service: 24-hour online service
pre-sale: Tailor made Technical cooperation
