Y81T-4000 Side Ejection Type Used Car Baler machine
- Product Details:
Place of Origin: china
Brand Name: HUAKE
Certification: CE SGS
Model Number: Y81-400
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 8000-150000 USD
Packaging Details: EXPORT WORTHY PACKAGE
Delivery Time: 55 DAYS
Payment Terms: L/C, T/T
Supply Ability: 200PCS Per Year
- Order phone：+86-13003381217
- Inquiry
Detail
| Model NO.: | Y81F-400 | HS Code: | 84629190 |
| Port: | Shanghai, China | Function: | To Bale Metal Scraps |
| Transport Package: | Nude Packing, Load Container Directly | Specification: | CE SGS |
| Trademark: | HUAKE | Origin: | Jiangsu China |
| High Light: | sgs Y81T-4000 used car baler HUAKE , Side Ejection used car baler HUAKE , SGS metal scrap baling machine | ||
Product Description
Y81 series hydraulic metal baler is mainly used for packing all kinds of light and thin plastic black and non-ferrous metal waste in cold state bundle blocks, so as to form a compact block in shapes of cuboids, cylinders & octagons, which is convenient for storage and transportation. It is an ideal equipment for metal scrap treatment in steel plant, nonferrous metal plant and smelting plant.
| No. | Technical parameters | remarks | |||||||||
| 1 | Main pressure cyl. force | Nominal thrust | 4000KN | number | 1 | ||||||
| 2 | side pressure cyl. force | Nominal thrust | 1800KN | number | 2 | ||||||
| 3 | lid cyl. force | Nominal thrust | 1200KN | number | 1 | ||||||
| 4 | Small door cyl. force | Nominal thrust | 800KN | number | 1 | ||||||
| Door lock cylinder | Nominal thrust | 300KN | number | 1 | |||||||
| 5 | Hydraulic system pressure | ＜25.0MPa | |||||||||
| 6 | Press box size(L×W×H) | 5800×2200×1300mm | |||||||||
| 7 | Bala size (W×H×(L)) | 700×700mm×(200～1800) | |||||||||
| 8 | Single cycle time | about 200 s | |||||||||
| 9 | Production Rate(steel) | 15-20 tons/hr | |||||||||
| 10 | Side-Push out’type metal baler | See picture | |||||||||
| motor | type | YVF280L-6 | number | 3sets | |||||||
| Rated speed | 970rpm | Rated power | 45KW | ||||||||
| 12 | pump | type | YCY250 | number | 3sets | ||||||
| Rated displacement | 250ml/r | Max operating pressure | 31.5MPa | ||||||||
| TOTAL WEIGHT | 90 tons | ||||||||||
Main Features
Special Features Of Huake light steel scrap metal balers
1: Reliable structural rigidity with enough weight
2. Cutting blade around lid and chamber box as to process long material
3 Adopt the Japan imported seals to ensure without phenomenon of oil leak and improve the service of the cylinder
4 Adopt the vessel classification of welding process to ensure that machine is more stable
5 Adopt Taiwan brand cooling system to extend use of hydraulic components
6: Adopt Rexroth joint venture brand valve group
Adopt connect motor with pump directly to ensure 100% concentricity and extend use of pump
8 Chamber size and bale size can be customized as clients demands
9: Using unique design which main cylinder stroke extended 100-200 mm
10: All electric wire of HUAKE automatic scrap metal balers were put into steel pipe, which avoid being cutting by scrap
11 For maintenance convenience machine use flange connection between steel pipe and hydraulic hose
METAL BALER CHARACTERISTIC
1. The hydraulic driving is adopted for the machine
2. The manual or PLC automatic control operations.
3. Installation does not need the foundation screw
4. Can choose diesel engine drive or motor driv
5. Three out- bag ways: Turn, Side push, front push.
6. The chamber box size and bale size can according to the customer request.
7, Voltage/frequency can according to customer requirement.
8, Can add two sides of knives and teeth on the chamber box
9. Can be equipped with cooler or heater
you may need to process such scrap autos.

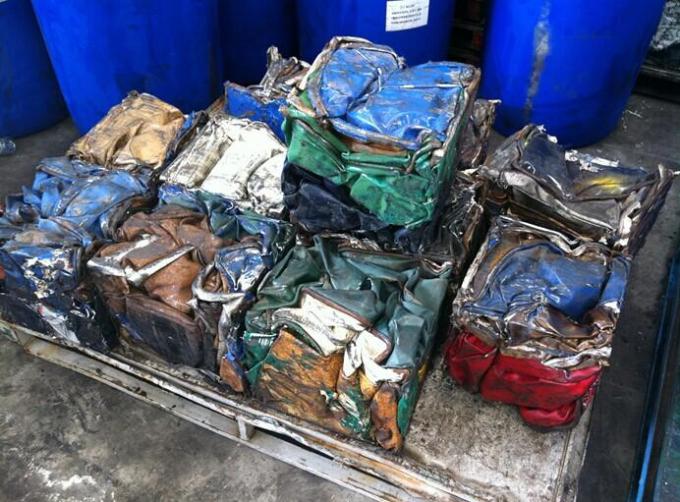

to make car bales like this
you need this powerful machine
Y81T-4000 Type side- ejection type long guarantee Automatic Car Baler machine on sale
Watch The Video
Youtube: https://www.youtube.com/watch?v=fvL_AmsDbw8
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Huake
Service: The machine are always tested and assembled before shipping, customer only need to follow simple steps to start. Engineers available on phone 24 hours, unsolvable problem come to fix.
Model Number: Y81F-400
After-sales Service Provided: Engineers available to service machinery overseas
Color: User Defined
specs to choose from or customize
| Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(kW) | |
| Y81F-400A | 400 | 3000x2000x1200 | 500x600 | 400-700 | 2x45 |
| Y81F-400B | 400 | 3000x2000x1200 | 600x600 | 450-750 | 2x45 |
| Y81F-400C | 400 | 3000x2000x1300 | 600x700 | 500-800 | 2x45 |
Product vedio on youtube :
https://www.youtube.com/watch?v=fvL_AmsDbw8
And
https://www.youtube.com/watch?v=dnEsj3_jV3I
Packaging & Delivery
Packaging Details: Nude packing, loading container directly.
Delivery Detail: 30-45 days
Warranty and after-sale service
1), we offer lifelong technical support and maintenance for free
2), 12 months quality guarantee with free spare parts free exchange after installation
3), 24 hours online service through e-mail, phone call, skype etc.
Features:
A) Hydraulic drive, manual valve operation or PLC control...
B) Bale-discharging: "turn-out", "push-out", "forward-out" & manual discharging.
C) Options for different force, press box size, bale shape & size
D) Electrical motor, diesel engine or generator for power.
Superiorty
We company professionally manufacture hydraulic balers and shears for more than 20 years, with certificates of ISO, CE, SGS,BV.
Our company locates at shangshou town jiangyin Jiangsu City, near Shanghai, we are factory with strict quality control team.
We insist on the enterprise concepts of good faith, excellence, innovation and development, welcome your coming !
